CAT NO: DIDACTICECE-LAB-0115

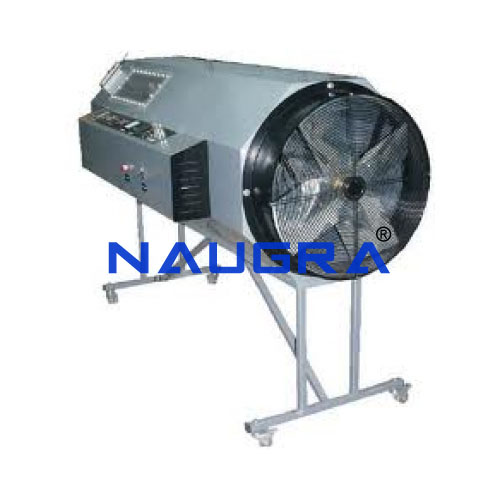

Wind power generator automated.
WIND POWER GENERATOR
The suggested equipment includes an aerogenerator with
horizontal axis and peak power of about 400 W; the support has
a nacelle on its top which contains the slow transmission shaft, the
revolution multiplier, the fast transmission shaft, the electrical
generator and the auxiliary devices. The nacelle can rotate in
respect to the support in order to keep the machine axis always
parallel to the wind direction, “horizontal aerogenerator”. The
system is started only when the speed reaches the minimum
threshold of insertion (about 3 m/s). An inverter connected to a
load controller and an accumulation battery enables to evaluate
the energy transport and storage devices. The telemeasurement
and telecontrol system on the control and supervision panel,
connected to a PC, favours the monitoring of the main electrical
operation parameters: voltage, current, power factor, frequency
and consumption. Besides, it enables to control two programmable
outputs for the system control, and a unit for the conversion to
PC: RS485/RS232.
TRAINING AND EXPERIMENT PROGRAM
Study of the wind energy: calculation of the average power developed
by the wind in a particular place.
The aerogenerator: typical structure, installation, orientation, variable
step of the rotor.
“Brushless” generator.
Study of the voltage controller according to the variation of the wind
speed and energy conversion. Energy storing devices.
Typical applications: illumination, power supply of remote
telecommunication equipments, battery loads….
Telemeasurements and telecontrols system: characteristics,
programming, measurements of the electrical parameters, connection
to RS485, network instruments setting and control software.
TECHNICAL SPECIFICATIONS
General characteristics of the aerogenerator
Easy installation and lightness of the total equipment made of
generator + support.
Carbon blades.
Aluminium structure with high resistance to corrosion.
Support for fan-generator coupling.
Rotor diameter: 1.15 m – Weight: 5.85 kg
Electrical energy production starting at the wind speed of
about 3 m/sec; at the speed of ~ 12.5 m/sec output power
of 400 W.
Brushless alternator.
Inner load controller that can externally match any kind of
battery.
Electronic control system for voltage control function of the
rotor speed and the battery load state.
Output voltage: 12-24-48 Vdc.
Wind gauge with transmission of the air speed value to the
control and supervision panel.
Control and supervision panel characteristics
1 DC voltmeter, 1 DC ammeter
Battery characteristics
Nominal voltage: 12 Vdc
Capacity: 140 Ah
Nominal current: 1 A
Load voltage: 14.1 V at 25 °C
Inverter characteristics
Input voltage: 10-15 Vdc
Full load input current: 60 A
Standby current: 0.72 A
Output voltage: 220/230 Vac
Output wave-form: changed sine
Output frequency: 50 Hz
Continuous output power: 600 W
Output peak power: 800 W
Efficiency: 90%
Stop for low battery charge: 10 V ±0.5 Vdc
Alarm for low battery charge: 10 V ±0.5 Vdc
Protection against overload
Characteristics of the telemeasurements and telecontrols system
Measurement and display of the following electrical parameters:
voltage, current, frequency, power factor, active, reactive and
apparent power, instant and mediated power (1, 2, 5, 10, 15, 20,
30, 60 min), energy (provided or absorbed)
Measurements in single-phase systems
2 I/O for RS485 network
2 outputs programmable as alarms (min/max threshold) and/or for
industrial controls
PC conversion unit: RS485/RS232
Panel with 5 electrical users of 230 V-60 W (lamps) with
insertion switches. The lamp unit can be used as integrative
photovoltaic source for indoor operation of the photovoltaic
panel
Optional items
Personal Computer
System for indoor operation
