Technical Description Both very large and very small water contents can be determined with precision by means of the two-stage process. For the direct determination of high water contents of x = 0.5 and below the separating calorimeter is used. High vapour contents between approx. x = 0.95 and x = 1.0 can be determined indirectly using the throttling calorimeter. The vapour is adiabatically expanded and transferred to superheated steam. The quality can then be determined with the aid of the h-s diagram. A supply of mains electricity and water are required for the operation of the unit. Steam up to max. 10bar and 240°C can be investigated.....
Product Code: DIDACTICLABNLE-Export-042001
Technical Description This benchtop unit allows variables that affect the process (such as capacity, dead space, flow rate and state of the intake air) to be adjusted from the panel. The simulator can model operating states up to the theoretical limits. The significance of the dead space and air re-expansion thus becomes clear. The model comprises a control panel and a data acquisition card with software. ....
Product Code: DIDACTICLABNLE-Export-042002
Technical Description The forms a complete steam power plant with the matched steam generator and the Universal Drive and Brake Unit. Heat energy is initially converted into mechanical energy and then into electrical energy by the operating as a dynamometer. The experimental module contains a steam engine, a condenser and a condenser tank together with comprehensive instrumentation. The steam engine is an enclosed two-cylinder machine with 180° crank offset. It is of single action with plunger pistons. The condensate tank is designed as a cascaded tank and separates oil from the steam engine. The clean condensate is pumped back to the feed water tank of the steam generator. A supply of cooling water is required for operation.....
Product Code: DIDACTICLABNLE-Export-042003
Technical Description The experimental module enables investigations and experiments to be performed on a single-stage compressor system. The compressed air generated is stored in a tank and is available as working medium. The Universal Drive and Brake Unit is required to operate the experimental module. It contains the motor that drives the module via a V-belt. Speed and torque measurements are also integrated. The system is equipped with electronic sensors for pressure, flow rate, speed and temperature measurements which facilitate PC data acquisition. The measured data can be transmitted to a PC for further processing.....
Product Code: DIDACTICLABNLE-Export-042004
Technical Description The unit provides all necessary data for recording the compressor characteristic and to depict the compression process on a p-V diagram. The pressures and temperatures for both stages are recorded using electronic sensors and indicated on digital displays. The air throughput and the electrical power consumption are also measured. The measured data is transmitted to a PC using a data acquisition card, and further processed on the PC. The unit is equipped with safety devices such as pressure relief valves and pressure switches.....
Product Code: DIDACTICLABNLE-Export-042005
Technical Description The compact benchtop unit contains all the essential components of a compressor system. The compressor to be tested is a single-stage single-cylinder machine. During the functional test the efficiency of the compressor is investigated against the increasing pressure in the tank over time. The power consumption of the drive motor is displayed on the switch box. A stopwatch is supplied for time-related measurements.....
Product Code: DIDACTICLABNLE-Export-042006
Technical Description Using the system, the operation of both a two-shaft system (vehicle, ship or generator drive) and a jet engine (aircraft propulsion) can be investigated. The turbine is started using a starter fan. The heart of the system is a gas generator comprising a compressor, combustion chamber and high pressure turbine. The energy in the exhaust is either converted into mechanical energy in the power turbine or accelerated using a nozzle and converted into thrust. The power turbine drives an asynchronous generator. It is easy to change from power turbine to thrust operation. The front of the unit has a display and control panel with a system diagram and digital displays for the process variables. Intake and exhaust silencing ensures low noise operation when using the power turbine. The turbine is equipped with the necessary safety devices. The use of propane combustion gas ensures odourless, clean operation. The system also requires a three-phase power supply and cooling water.....
Product Code: DIDACTICLABNLE-Export-042007

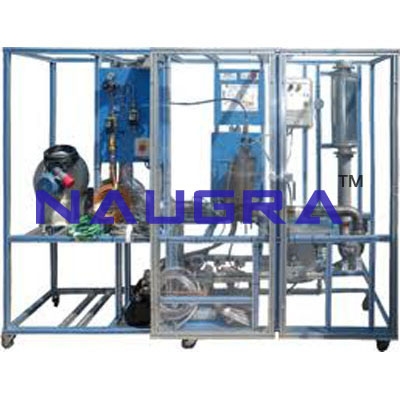

Technical Description The unit represents a two-shaft system with a radial compressor and turbines. The system contains a gas generator comprised of a compressor, combustion chamber and high pressure turbine, followed by a free running low pressure turbine. The low pressure turbine is coupled to an asynchronous generator via a belt drive. The electrical energy generated when the turbine is loaded is dissipated using braking resistors. The gas turbine is started with a starting fan. Lubricating oil is supplied to the turbine by an independent pump with oil filter and oil cooler. All controls and displays are mounted on the front panel in the relevant place on the system diagram. The turbine is equipped with safety devices to prevent high turbine inlet temperature, faults in the oil supply and overspeed. Silencers on the intake and exhaust piping enable the unit to be used in normal laboratories. The usage of propane gas ensures clean, odourless operation and low exhaust gas emissions. The system also requires a three-phase power supply and cooling water. ....
Product Code: DIDACTICLABNLE-Export-042008

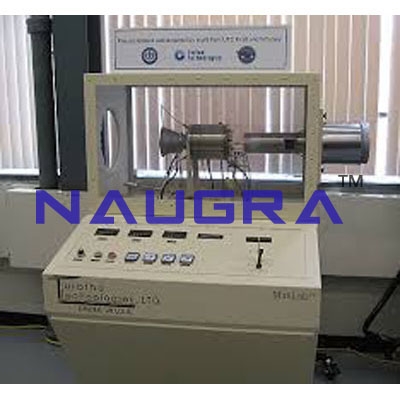

Technical Description Using the behaviour of a jet turbine can be studied. Jet turbines are used on aircraft for propulsion due to their low weight and their high performance. The gas turbine is a single-shaft jet engine with radial compressor and axial turbine. Compressor and turbine are of single-stage design. The intake volumetric flow rate is measured using a measuring orifice. The thrust force is measured using an electronic force sensor. The turbine is started fully automatically with the aid of an electric starter. PC data acquisition with evaluation software permits online logging and graphical representation of all relevant process variables.....
Product Code: DIDACTICLABNLE-Export-042009
Technical Description Nine different process parameters can be set using potentiometers on the front panel of the benchtop unit. The software provides a wide range of diagrams and graphs. The simulator can model the theoretical system limits without hazard, limits at which real systems would be destroyed or seriously damaged. The unit comprises a control panel, data acquisition card and software.....
Product Code: DIDACTICLABNLE-Export-042010

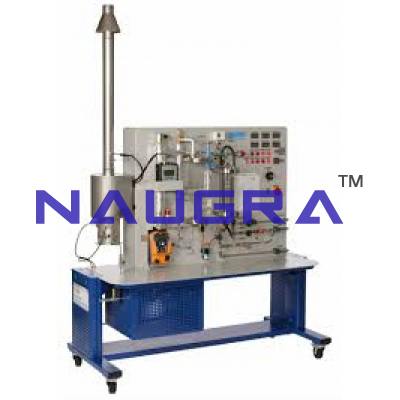

Technical Description The benchtop unit is intended for operation together with the steam turbine, but can also be operated independently. The unit comprises a gas heated boiler with superheater, condenser with evacuation unit, condensate and feed water pump, safety devices and instrumentation including an exhaust gas analyser. The instantaneous boiler system delivers steam after a few minutes, max. 8kg/h at 10bar and 225°C. The cyclic process is easy to follow and understand as all components are clearly arranged on the front panel. All measured values are displayed both on the front panel and on a PC via the data acquisition system provided as standard. It is also possible to prepare charts or graphs from measurements with the supplied software. The steam generator is designed in accordance with the German "Technische Regeln Dampf" (TRD) (Technical Regulations for Steam). It is pressure tested and has all the stipulated safety fittings. A supply of mains electricity, water and propane or natural gas is required.....
Product Code: DIDACTICLABNLE-Export-042011
Technical Description The steam turbine together with the steam generator ET 850 forms a steam power plant. The turbine is a single-stage impulse turbine. It expands directly into the condenser. The turbine is loaded using a belt brake dynamometer. The turbine is equipped with safety devices including a steam shut-off triggered by overspeed or excess condenser pressure. All measured values are displayed both on the instruments on the front panel and on a PC via the supplied data acquisition card and software.....
Product Code: DIDACTICLABNLE-Export-042012

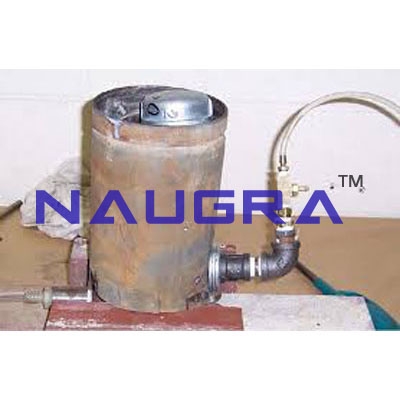

Technical Description The electrically heated steam generator is intended to be used to supply and requires only a drain connection. An exhaust flue is not necessary. The steam generator is type approved and does not need any specific permission for operation according to German regulations. Function is fully automatic. The short warm up time until steam is output makes extensive experiments possible in a short time. Comprehensive safety equipment ensures safe operation in all circumstances.....
Product Code: DIDACTICLABNLE-Export-042013

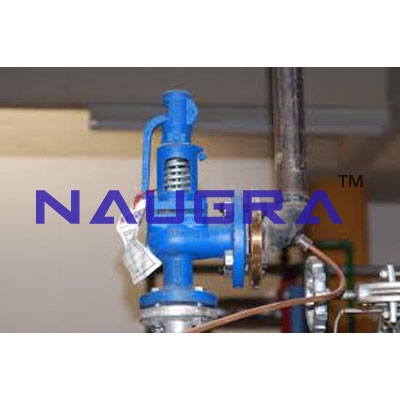

Technical Description The unit has been developed and built in accordance with the German technical regulations for steam and boilers . The normal operation of a boiler as well as malfunctions in the water level and pressure sections of the boiler that trip the safety control system monitors the operation of the boiler and uses original parts with TRD approval. In addition to the safety devices it is possible to switch in up to 15 system faults. Various fault conditions in system components can be simulated and their identification practiced. The system comes equipped with PC data acquisition. A supply of compressed air is required.....
Product Code: DIDACTICLABNLE-Export-042014
Technical Description The specially designed for technical training in the area of power plant engineering, and power engines and machines, and as a result offers numerous experiments. An oil-heated instantaneous boiler generates wet steam, a superheater provides superheated steam. The turbine is loaded with a generator, the energy generated is returned to the electricity mains. After the turbine, the steam is condensed and fed back to the boiler. All relevant parameters are measured using sensors and transducers and displayed on a clearly laid out switch panel as measured values. The switch panel contains a clearly laid out flow diagram for the system. Data from the electronic measuring instruments can be transferred directly to a PC for further processing. The system is monitored and controlled using a PLC.1 A fuel tank and feed water tank are integrated into the system to form a self-contained unit. The feed water circuit is equipped with a complete feed water treatment unit that comprises a regenerating ion exchanger and chemical metering. The system is supplied with comprehensive documentation. It has been built in accordance with legal safety requirements and includes the stipulated safety devices. Due to the usage of an instantaneous boiler, rapid generation of steam is possible (t approx. 5min). The boiler is type approved and does not need specific permission for operation according to German regulations.1 A supply of three-phase mains electricity and cooling water (10m³/h), or the cooling tower, are required for operation.....
Product Code: DIDACTICLABNLE-Export-042015

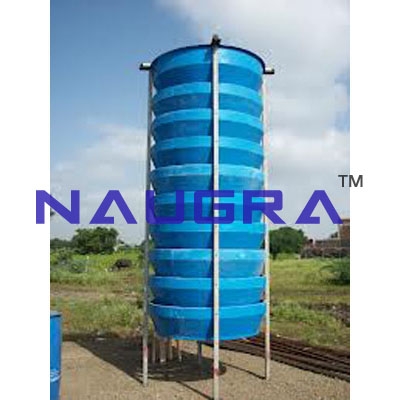

Technical Description This cooling tower with forced draught can be integrated into the cooling water circuit . Evaporation loss are compensated automatically. Temperature, atmospheric humidity and water flow rate are measured at the inlet and outlet of the cooling tower. The tower is designed using corrosion-resistant materials suitable for outdoor use. It is also equipped with a roof to protect it from the rain. The cooling tower is connected to the electrical system and water system.....
Product Code: DIDACTICLABNLE-Export-042016

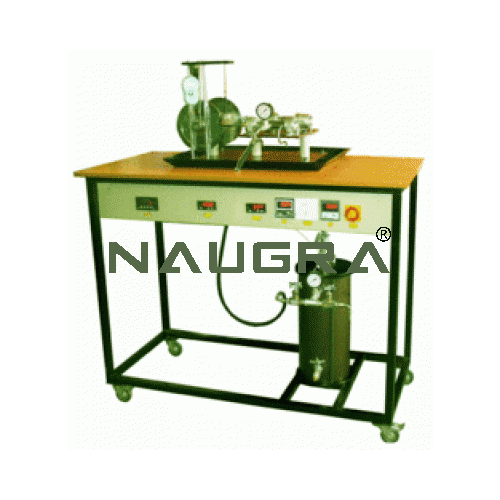

Technical Description The unit contains the key components of a steam power plant: a gas-heated boiler, a double-acting single-cylinder piston steam engine with generator, a condenser and a feed water supply with tank and pump. All necessary safety devices are fitted. A supply of mains electricity, water and propane gas are required for operation.....
Product Code: DIDACTICLABNLE-Export-042017
