CAT NO: DIDACTICNLE-Export-220255

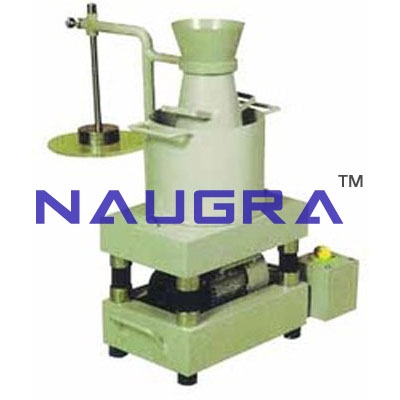

Vee Bee Conslstometer- Engineering Lab Training Systems.
S : 1199-1959 Consists of a vibrator table resting upon elastic
supports, metal pot, sheet metal cone open at both ends and a standard
iron rod. The table is equipped with an electrically operated vibrometer
mounted under it by an electic motor, with double ended shaft working
on 220 volts, single phase,A.C. supply.
The steel metal cone Is
30 em. high with dia. at the bottom 20 cm and at top 10 em. A swival arm
older is fixed to the base Into which telescoped another swivel arm
with funnel and guide sleeve. A graduated rod is fixed on to the swivel
arm and at the end of the graduated' arm a transparent disc
is screwed..The divison of the scale on the rod records the slum of
concrete cone, in centimeters and the volume of concrete after vibration
of the cone In the pot. complete with electrical accessories.
