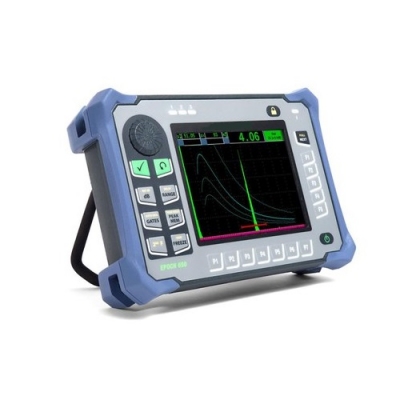

Ultrasonic Testing

Ultrasonic Testing

CAT NO: DIDACTICModel No NCN059

Ultrasonic Testing Description and Tender Specification:

Ultrasonic Testing.
Ultrasonic Testing Ultrasonic phased array flaw detector Configuration 16:64 (16 pulser / receivers, driving up to 64 elements) • Transducer Socket: I-PEX • Pulse Voltage: -50 V to 100V (in steps of 10V) • Architecture: Full digital delay and sum architecture • Digitizing Frequency: 50 / 100 MHz • Digitizer Resolution: 12 bits • Data Processing: 16 bits samples • Data Recordings: Full raw data recorded • Max A-Scan Length: 8192 samples (32 metres in steel LW, 50 MHZ, 1:128) • Supported Scans: S-Scan and L-Scan • Real Time Views: S, L, B, C-Scan, Top and End view • Colour Maps: 8 Standards • Multi Group: Multiple Sector scans and TFOD • Conventional UT / TOFD (Mono element channels) • No of Channels 2 TX/RX (2 multiplex channels) • Test Mode Pulse-Echo, transmit/receive, TOFD • DAC Quantity: 1 with 3 sub-DAC (per focal law in PA) • Time Corrected Gain (TCG) • A-Scan Gates: 4 gates per A-Scan, CAD/CAM LABORATORY EQUIPMENTS, educational cnc milling machines manufacturers, educational cnc LATHE machines manufacturers, Strength of Material Testing equipment supplier, mechanical engineering laboratory equipments suppliers, soil, bitumen, concrete testing, civil engineering laboratory equipments suppliers
