CAT NO: DIDACTICNEE1027

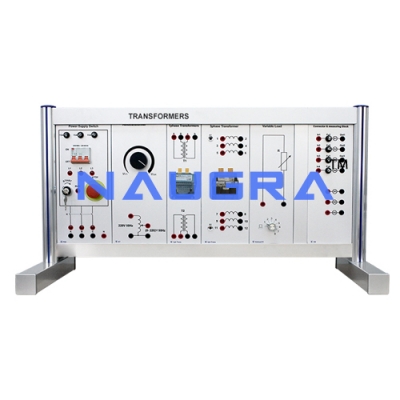

Transformer Trainer.
equivalent circuits, phasor diagrams, loss components, load testing and regulation, transformer components etc.
A comprehensive experiment manual is provided to guide the students on basic transformer theory and practice, and also provides a practical introduction to power supplies and electrical machines.
Experiment topics:
- Polarity of windings
- Series and parallel connection of secondary windings
- Magnetic circuits, incorporating the concept of flux, flux density, field strength, magnet automotive force.
- Phasor diagram with transformer on no-load
- Equivalent circuit of power transformer
- Transformer efficiency using open and short circuit test
- Full load test showing temperature rise and efficiency
- Voltage regulation using open and short circuit tests
- Current transformer
- Delta and Y connection
Specification:
a. Base Station : This unit serves as the platform for carrying out student experiments. The unit contains two ammeters and two voltmeters which are used to do the voltage and current measurement during the experiments. A clear diagram of a transformer is shown on the base station and is completed with 4mm terminal connections to build transformer circuits. Circuit protection is provided to prevent short circuit and over current conditions.
- Power requirement : 220V/380, 50/60Hz
b. Single Phase Transformer:
- Primary : 220V
- Secondary : 0-12 V/3A, 0-24V/1.5A, 0-42V/0.75A
c. Single Phase Transformer:
- Primary : 220V
- Secondary : 2 x 110V/1 A
d. Three Phase Transformer :
- Primary : 380V/300W, 3 phase
- Secondary : 0-380V, 3 phase
e. Accessories:
- Experiment manual
- Sets of test leads
Sample Training experimental manual to be provided during the bidding process to ensure all experiments are met.
