CAT NO: DIDACTICNLE-Export-202088

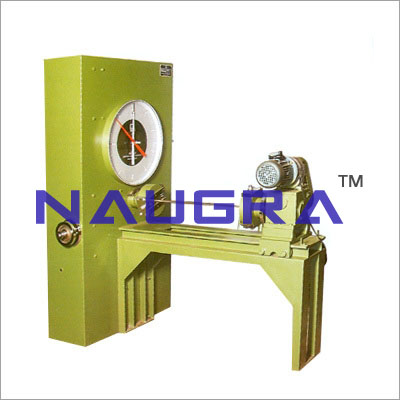

Torsion Testing Machines.
Torsion testing machines The torsion test machine is applied to do
torsion test for elastic element, components, bolts and other mechanical
properties. This machine is guaranteed to meet the relative
requirements of ISO, ASTM, JIN, GB and many other testing.
The machine uses a horizontal structure, a high-performance sing-chip
CPU LCD controller is
adopted into the machine, easy to operate and can display torque,
torsion speed, torsion angle, etc, the precision reducer can make the
machine run quietly and smoothly. The overload protection, over current
protection can protect the machine well.
Technical Parameter:
Max Torque-50 N.M,100 N.M,200 N.m,500 N.m
Min reading-0.01N.m
AngleRange-0ï½ï¿½99999
Resolution of angle-0.01°
Accuracy- Measurement range : 2%-100%F.S ≤±1%
Error of Repeatability-≤±1%
The distance between the clamps-0-300mm,0-600mm
Torsion Orientation- Positive or Negative Direction
Shaped.Specimen, Super hard material- The Chucks
are Options Upon Order
Power Supply-220V±10%,50Hz
