CAT NO: DIDACTICNLE-Export-081107

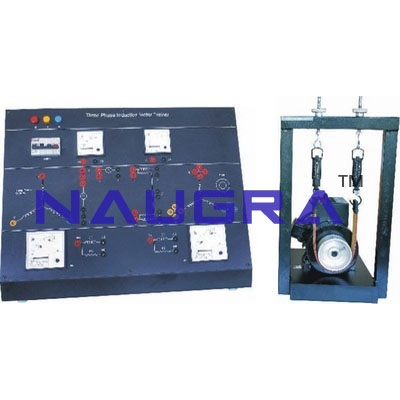

Three Phase Induction Motor Trainer.
Three Phase Induction Motor Trainer is an
adaptable training system for the Electrical laboratories. The product
helps you to get fully acquainted with the basic concepts and
functioning of a Three Phase Induction Motor. The trainer practically
expertises you in exercises like Running and Reversing, No Load Test,
Block Rotor Test, Slip Measurement etc. The varied scope of learning
makes the subject understanding complete.
Exclusive and rugged designed panel
Stand alone operation
Designed, consider all the safety precautions
High quality meters
Diagrammatic representation for the ease of connections
Provided with an extensive e-manual
2 Year warranty
Technical Specifications
Mains Supply : Three Phase
415 V ±10 %, 50 Hz
Motor's Specifications
Type : Squirrel Cage
Rating : 1 HP
RPM : 1410 (No Load)
Meters used
Wattmeters : 1000 W (2 Nos.)
Voltmeter (MI) : 500 V
Ammeter (MI) : 5 A
MCB : 10 A
Dimensions (mm.) : 350 W 600 D 450 H (Panel) 250 W 400 D 600 H (Motor)
List of Experiments
Study of Running and Reversing of Three Phase Induction Motor
Study of No Load Test performed in a Three Phase Induction Motor
Study of Block Rotor Test performed in a Three Phase Induction Motor
Measurement of Slip in a Three Phase Induction Motor
Study of Speed-Torque characteristics in a Three Phase Induction Motor
