CAT NO: DIDACTICNEL0685

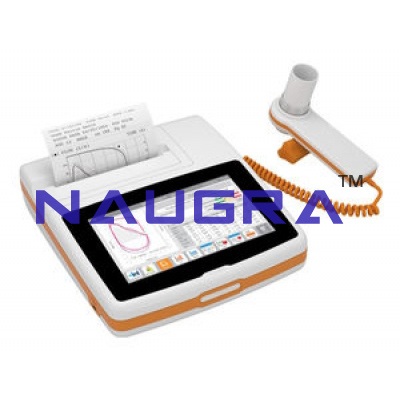

Table Top Portable Spirometer.
Table top portable spirometer
Turbine type transducer, (Fleisch) type transducer is an optional
FVC, VC, MVV tests in PRE and POST bronchodilatation mode
Graphic superposition
Check-up program
Configuration program
Internal data base for 500 tests graphics (Option)
Internal printer : 58 mm
External printer connection (Option)
Data transfer via Internet with PC of : Patients tests, Device check-up data & Software upgrade
Tests exportation to other management systems
Calibration for quality control or tests, according to standards
SpO2 module (Option)
MEP-MIP module accessories (Option)
Software under Windows to work with PC in real or deferred time (Option)
Measuring Range : Flow from 0 to ± 16 l/s; volume from 0 to 10 l
Flow-Volume Accuracy : - 5% or 200ml/s - 3% or 50 ml - whichever greater (ATS, ERS)
Flow resistance : <0.06 kPa/l/s at 14 l/s (ATS, ERS)
Resistance at 14 l/s : - Turbine = 0.125 KPa/lls
Display : Liquid Crystal Display; 320x240 pixels, Area of 120x90 mm
Data input : Alphanumeric membrane keyboard
Maximum duration and number of manoeuvres : FVC, 25s (5 curves); VC, 45s (5 curves); MVV, 15s (5 curves)
Safety standards : IEC 601.1 (EN60601.1), UNE 20-613, IEC 601.1.1 (EN601.1.1)
Power supply : 200-240 V 50/60 Hz (other voltage on demand)
Power 25 VA (approx)
Dimensions : 210x297x95 mm.
Weight : 1.7 Kg
