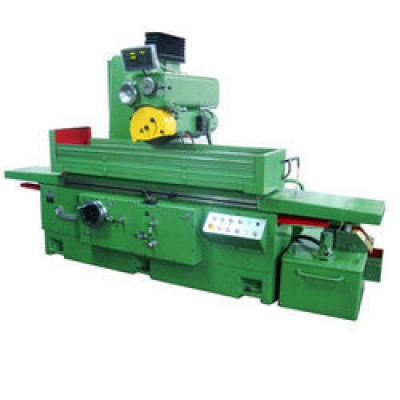

SURFACE GRINDING MACHINE

SURFACE GRINDING MACHINE

CAT NO: DIDACTICNULK2- -0085

SURFACE GRINDING MACHINE Description and Tender Specification:

SURFACE GRINDING MACHINE.

·       Working surface: 1500 x 500mm

·       Max table travel: 1600mm

·       Max cross travel: 570mm

·       Distance b/n table & spindle center: 590mm

·       Max table load: 700kg

·       Table speed: 5 – 25mm/min

·       No. of T-slots: 3

·       Size of T slots: 16mm

·       Cross feed hand wheel: 0.02mm

·       Automatic Cross feed of saddle: 0.5 – 12mm

·       Power cross feed at 50Hz: 1250 mm/min

·       Grinding wheel: 355 x 38 x 127 mm

·       Spindle speed at 50Hz: 1450 rpm

·       Vertical hand wheel: 0.5mm

·      Power head increment: 230mm/min

·      Hydraulic motor: 2.2kW

·      Coolant motor: 90W



Accessories

I.           Splash guard

II.         Wheel guard

III.       Electromagnetic chuck

IV.       De-magnetizer

V.         Coolant system

VI.       Halogen lamp

VII.     Overhead wheel dresser

Servo Controller for Grinder
