CAT NO: DIDACTICNLE-Export-081112

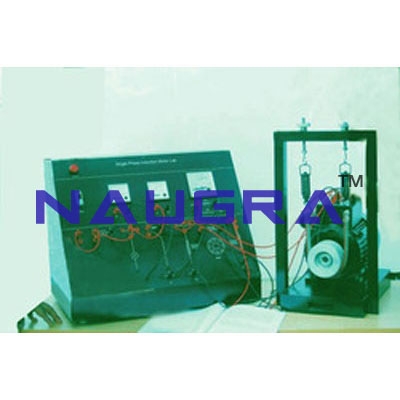

Single Phase Induction Motor.
Single phase induction motor lab is an exclusive and attractive training
system for the electrical laboratories. It provides complete learning
concepts of single phase capacitor start induction motor. Separate
terminals have been provided for main winding, starting winding and
capacitor so that student can understand the significance of individual
windings along with the role of capacitor in the motor in a simple
manner. It includes phenomenon of excitation, running and reversing
of the motor. Students can calculate the equivalent circuit parameters
and the power factor of the motor. It demonstrates the relation between
speed and torque, known as load characteristic or speed-torque
characteristic of the motor. All connections and appearance of panel are
designed in a simple manner. Students can make connections by
themselves.
Exclusive and attractive designed panel
Stand alone operation
Designed by considering all the safety standards
High quality meters
Diagrammatic representation of the circuit for ease of connections
e-Manual
Technical Specifications
Mains Supply : 230 V ±10%, 50 Hz
Induction Motor
Type : Capacitor start
Phase : Single
Current type : AC
Rating : 1 HP
Voltage rating : 230 V ± 10%
Meters Used
Voltmeter : 0-300 V
Ammeter : 0-10 A
Wattmeter : 1000 W
MCB : 10 A
Dimensions (mm) : W 350 × D 450 × H 600
Scope of Learning
Study of Single Phase Induction Motor
Study of Running and Reversing of Single Phase Induction Motor
Study of the No-Load Test in a Single Phase Induction Motor
Study of the Blocked Rotor Test in a Single Phase Induction Motor
Study of Load Test of a Single Phase Induction Motor
