CAT NO: DIDACTICNMT0085

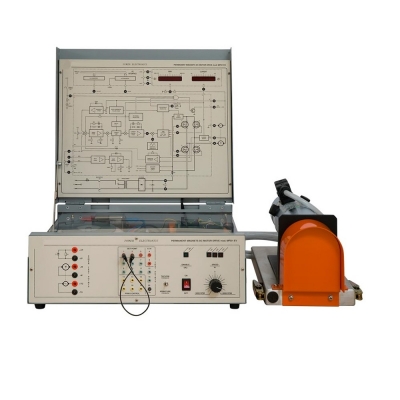

Servomechanism for Permanent Magnets DC Motor.
Servomechanism for Permanent Magnets DC Motor 2 bar-graph indicators for speed and current
Servomechanism Characteristics: Speed set-point which can be fixed via potentiometer or PC; Speed regulation range: ± 3000 r.p.m.
Motor Unit Characteristics: Metal base; Permanent magnet DC motor; Tachogenerator splined to the motor shaft; Nominal armature voltage 80 V; Nominal armature current 8A; Nominal speed: ±3000 r.p.m.
DIM.: 400x120x170 mm; Weight: about 11 kg;
Power Supply: Single-phase 115 V / 230 V ±10% 50/60 Hz;
Max power about 1Kva.
