CAT NO: DIDACTICNMT0196

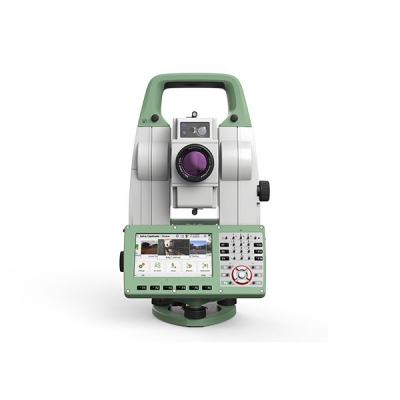

Robotic Total Stations.
Robotic Total stations Use: Survey work (traversing), distance measurement
Standards:
BS 7334-8: 1992, ASTM E4, C39, DIN 51220, BSEN 10002-3:1995, Specifications:
Fast Measurement in quick mode less than equal to 1.5 sec.
Manual Focus Mode only.
Visible Laser Pointer.
Dual Axis Compensator.
12000 points on board memory.
Range under Normal conditions: -
Single Prism: 2000m Three Prism: 2800m
Angle Accuracy 6”.
Distance Accuracy to One Prism: +/-(3mm+2ppmxD) mm
Temp. Pressure Sensors inbuilt.
Large LCD display screen, 8lines 20characters
Battery 4/5 hrs. continuous use.
Charger with graphic display & discharge function.
Laser Plummet in alidade rotating through 3600.
A small Bull’s eye bubble on alidade.
Two Electronic bubbles 20”/30” sensitivity at right angles to each other on display panel.
Alpha Numeric Keyboard (One side only).
2nd Side display
Single Prism with holder tilting type and target plate.
Tribrach adaptor with tubular bubble and optical plummet.,
Tribrach without optical plummet with circular bubble
Aluminium stand
