CAT NO: DIDACTICNMT0148

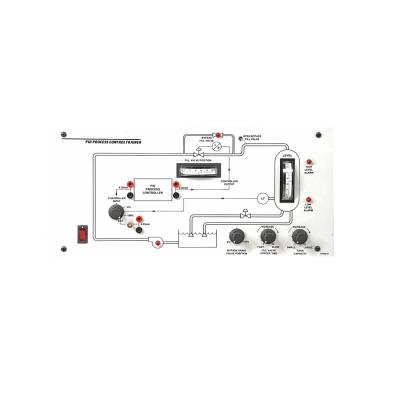

PID Process Control Training Module.
The main regulation algorithm can have PID, PI, PD, P or On-Off (auxiliary output) action.
Proportional band from 0.5 to 999.9%: Time of the integrative action from 1 to 9999 seconds; Time of the derivative action from 0.1 to 9999 seconds; Dead band on the error 0.1 – 10.0 digit; Upper/Lower limit of the regulating output 0.01 – 99.99% seconds
Analog inputs: In d.c. voltage:
2 d.c. inputs; Input resistance: Ri> 10 KOhm for the ranges: 1-5 V, 0-5 V and 0-10 V, and Ri> 10 MOhm for the range: 0-300 mV; Measurement tolerance: 0.1% ±1 digit;
Digital inputs: 3 Auxiliary ON/OFF inputs (0-24 Vdc);
Set-point: Local setting via keys present on the unit; Remote set-point: 1-5 V, 0-5 V and 0-10 Vdc;
Analog outputs- In d.c. voltage: d.c. outputs; range 1-5 V; 0-5 V; 0-10 V; 20 mA max, Resolution: 12 bit, Tolerance: 0.1%;
Digital outputs- 4 Auxiliary relay output with On-Off action
Signal matchers- Input/output matchers;
Serial communication- RS-485 Modbus Slave for parametrization and supervision, RS-232/RS-485 for communication to PC.
DIM.: 313x290x355mm;
Power Supply 230 Vac, ±10%, 50/60 Hz;
