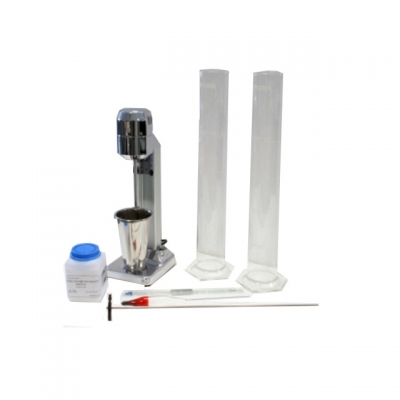

Particle Size Analysis Test Set

Particle Size Analysis Test Set

CAT NO: DIDACTICNMT0293

Particle Size Analysis Test Set Description and Tender Specification:

Particle Size Analysis Test Set.
Particle size analysis Test set Use: Particle size analysis for fine grained soils, determination of specific gravity of soils types

Standard:
ASTM D-422;AASHTO T-88.

Specifications:
1 Mechanical Analysis Stirrer.
1 Sodium Hexametaphosphate, 1 lb.
1 Hydrometer ASTM 152H.
1 Hydrometer ASTM 151H.
2 Hydrometer Jar, 1000ml.
1 Hydrometer Jar Bath.
1 203.2mm ( 8") Brass Sieve #4 Mesh
1 203.2mm ( 8")  Brass Sieve #10 Mesh
1 203.2mm ( 8")  Brass Sieve #20 Mesh
1 203.2mm ( 8")  Brass Sieve #40 Mesh.
1 203.2mm ( 8")  Brass Sieve #60 Mesh.
1 203.2mm ( 8")  Brass Sieve #140 Mesh.
1 203.2mm ( 8")  Brass Sieve #200 Mesh.
1 203.2mm ( 8")  Brass Cover Less Ring .
1 203.2mm ( 8") Brass Pan.
1 203.2mm ( 8")  Brass Sieve 3/8 Mesh.
1 203.2mm ( 8")  Brass Sieve 3/4 Mesh.
1 203.2mm ( 8") Brass Sieve 1 1/2” Mesh.
1 203.2mm ( 8") Brass Sieve 2” Mesh.
1 203.2mm ( 8") Brass Sieve 3” Mesh.
1 Sieve Brush.
1 Fine Sieve Brush.
1 Wire Sieve Brush.
1 Graduated Cylinder, 1000 ml.
1 Beaker, Glass 600 ml.
1 Evaporating Dish, 1285ml .
110 - 220vAC, 50/60Hz,

Accessories specifications
Hygrometer jar bath
Standard:
BS 1377, ASTM D422, AASHTO T88

Specifications:
Capacity.       8 hydrometer jars.
Construction.            Stainless steel tank; enamel finish exterior.
Jar Support.   Stainless steel grid.
Temperature Range. Ambient to 60°C (140°F).
Sensitivity.    ±0.2°C at 20°C (68°F).
Circulating System. Drive pump with motor.
Heating System. Immersion type; 700 watt heater in stainless steel mixing chamber.
Plumbing Ports. Overflow; Drain; Inflow and outflow for cooling system.
Inside Dimensions. 959 x 197 x 419 mm (37-3/4" w. x 7-3/4" d. x 16-1/2" h.).
Outside Dimensions. 1,016 x 254 x 584 mm. (40" w. x 10" d. x 23" h).
Weight. Net 36 kg 80 lbs.
110vAC to 230vAC, 50/60 Hz,

Hygrometer Jar
Standard:
ASTM D-422 and AASHTO T-88

Specifications:
Heavy beaded finish on the top.
White graduation ring calibrated at 20°C displays the 1,000 ml point of the cylinder.
Construction in Glass.
Graduation. 1,000 ml at 20°C.
Dimensions   64 x 457 mm. (2-1/2" o.d. x 18" h.); 108 mm4 (-1/4" diam.) base.
Weight. Net 0.7 kg (1-1/2 lbs.).
