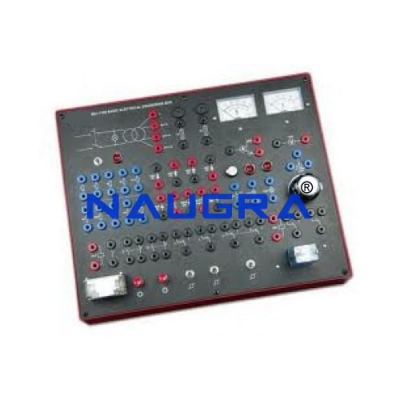

Module for magnetic and Electro Magnetic

Module for magnetic and Electro Magnetic

CAT NO: DIDACTICECE-LAB-0169

Module for magnetic and Electro Magnetic Description and Tender Specification:

Module for magnetic and Electro Magnetic Principles Training Kit with Software.
The main exercises which can be carried out are:
• Voltage, current and power measurements
• Diode and filter rectifier circuits
• Ohm’s law
• Kirchoff’s and Thevenin’s principles
• Ohmic/inductive/capacitive circuits
• Study of the transformer
• Main lighting installations
• Acoustic and lighting signaling installations
TRAINING PROGRAM
GENERAL ELECTRICAL ENGINEERING AND MEASUREMENTS
• Ac voltage and current measurements
• Diode insertion with different configurations
– Half-wave rectifier
– Full-wave rectifier
– Graetz bridge rectifier
– Voltage doublers
• Dc voltage and current measurements
• Insertion of resistances with different configurations
– Resistance measurements
– Checking the Ohm’s law
– Series resistors, voltage divider
– Parallel resistors, current divider
– Series and parallel resistors
– Max. power transfer
– Kirchoff’s principle
– Superimposition principle
– Thevenin’s theorem
• Power measurements
– Dc power measurement
– Joule’s law
– Ac power
• Insertion of capacitors with different configurations
– Charge and discharge of a dc capacitor
– Series dc capacitors
– Parallel dc capacitors
• Electromagnetic phenomena
– Inductance of a coil
– Coils in series
– Coils in parallel
• Ohmic/inductive/capacitive circuits
– RC circuit
– RL circuit
– Series resonant circuit
– Parallel resonant circuit
– Q-factor
– Coupled circuits
– Attenuators
• The transformer
• Leveling filters
– Inductive circuit
– Capacitive input
– LC filter
TECHNICAL SPECIFICATIONS
The structure is made with sheet steel, treated chemically and
painted with epoxy paint. The silk screen panel is in insulating
material. It includes a drawer with key-lock to contain all
accessories.
Main installed components:
• General switch, fuse and signaling lamp
• 1 Safety single-phase transformer 115-230V / 6-12-24 Vac – 1 A
• 2 Fuse-holder with fuse type 6x30 – 1A
• 1 Moving iron ammeter with range: 0.5-1 Aac/dc
• 1 Moving iron voltmeter with range: 25 Vac/dc
• 10 Resistors of different values (2 Ω, 4 Ω, 8 Ω, 16 Ω, 31,5 Ω,
63 Ω, 250 Ω, 500 Ω, 1000 Ω, 2000 Ω)
• 1 Linear rheostat 100W – 25W
• 4 Diodes 6A – 100V
• 2 Lamp-holder with 24-V signaling lamp
• 1 24-Vac buzzer
• 1 Electrolytic capacitor, 100μF 25Vdc
• 2 Electrolytic capacitors, 500μF 25Vdc
• 2 Inductances 60 mH 0.5 A
• 2 Pushbuttons for general use
• 2 Shunters for general use
• 1 Inverter for general use
• 1 Eelay, 2 exchange contacts, 24 Vac coil
• 1 Step-by-step relay, 24-Vac coil
