CAT NO: DIDACTICNLE-Export-081139

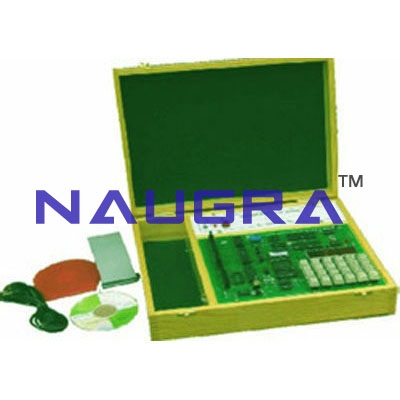

Microprocessor Trainer.
Microprocessor Trainer can interface with IBM PC/XT/AT
computer with the help of 96 bit TTL I/O experimental interface and
editor assembler software. It is quite an efficient system based on
industry standard intel ìp for the purpose of training and prototype
development of microprocessor based systems. Its hardware is capable of
supporting multi processor configuration also.
The unit is
self contained and requires no other apparatus. Practical experience on
this board carries great educative value for science and engineering
students.
The microprocessor trainer is designed to teach the
subject of microprocessor programming and interfacing through practical,
essentially designed to teach the study of :
Design student projects
Familiarize components used in Microprocessor based instruments
Study the signals generated by the Microprocessor
Learn the art of programming in machine language
Design application oriented equipment
Design and debugging techniques, etc.
Perform input / output experiments
Hardware Specifications:
CPU : Microprocessor @6.144 MHz
MEMORY
: Total space ON BOARD is 48KB,Comprising of 16KB monitor EPROMS and
32KB RAM. Battery Backup for RAM. No expansion required
Experiment:
Program to perform integer division 8-bit by 8-bit
Program to perform integer division 16-bit by 8-bit
Transfer of a block data in memory to another place in memory in the direct and reverse order
Finding the parity of number
Sorting of array in Ascending order
Sorting of array in Descending order
Program to multiply two 8-bit numbers
Program to generate and sum 15 Fibonacci number
Program for rolling display of message “INDIAN”
To insert a number at correct place in a sorted array
Program to display smallest number in an array
Program to display largest number in an array
Program to add 2 numbers in Hex and Decimals
4 digit Hex counter.
Program for converting 8 bit binary (Hex) to Decimal
Subtraction of two 16 bit numbers
Program to perform Hex to BCD conversion.
Program to read key board and display its code
Program to find HCF
Program to find LCM
Features:
The unit is operative on 230V, 50 Hz A.C. Mains
Strongly
Supported by Detailed operating Instructions, giving details of Object,
Theory, Design procedures, ReportSuggestions and Book References
Weight : 5 Kg. (Approx.)
Power Supply: 5V @ 1A, ± 12V @ 500mA All assembled in an well de signed cabinet
