CAT NO: DIDACTICNLE-Export-081146

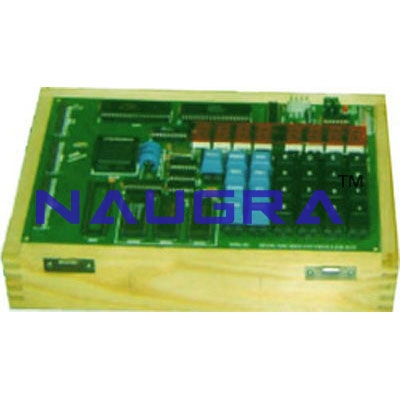

Microprocessor Trainer Kit.
Is a single board microcontroller trainer kit
based on 16 bit microcontroller family, which is widely used to train
engineers to develop on software/hardware for any industrial process
& control. Kit has power-full monitor eprom, ram, i/o lines,
timer/counter, serial, lcd display, keyboard for man to machine
interface.
Features
16k bytes of eprom with 16k bytes of battery backup ram
24 i/o lines, three channel timer/counter, pc serial interface
Seven segment display with 25 keys hex keypad
Power-full
command like single stepping, break point, full clock execution,
examine memory/ register
Uploading & downloading to and from pc in windows98/xp/nt
In-built power supply
Specifications
CPU operating at 12 mhz
16k bytes of ram using two nos. Of 6264 with battery
Backup using nicd battery, memory expandable up to 64k
16k bytes of powerful monitor eprom using 27512
24 i/o lines using brought at 26 pins frc connector to interface with ic-xx series
Rs-232c interface using rx/tx
Eight digital seven segment display with 25 keys hex keyboard using
On-chip 8 channel 10 bit adc
On-chip pwm
On-chip high speed i/o
On-chip interrupt
Two modes of operation
- Keyboard mode
- Serial mode
Cross assembler software
Powerful
commands like examine/edit memory,examine/edit register, single
stepping, execution can be used through hex keyboard or pc serial mode
Facility for downloading/uploading files from/to pc
All
address, data, control & port lines are available on 40 pins &
20 pins frc connector
All ic’s are mounted on ic sockets
Bare board tested glass epoxy smobc pcb is used
In-built power supply of +5v/1. 5a, ±12v/250ma
Attractive wooden enclosures of light weight australian pine wood
