CAT NO: DIDACTICNLE-Export-081144

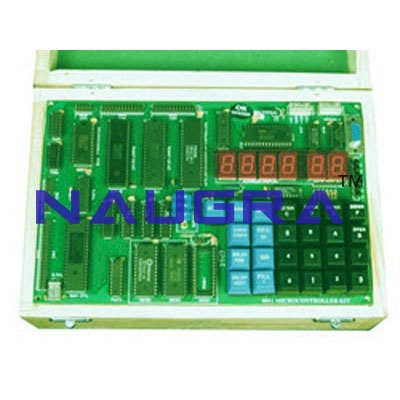

Microcontroller Trainer Kit (LED).
Is a single board microcontroller trainer Kit
based on 8 bit microcontroller, which is widely used to train engineers
to develop on software/hardware for any industrial process &
control. Kit has power-full monitor EPROM,RAM, I/O Lines, timer/counter,
serial, seven segment display, keyboard for man to machine interface.
Features
16K Bytes of EPROM with 8K bytes of battery backup RAM
48 I/O lines, three channel timer/counter, PC Serial interface using USART, interrupt controller
Seven segment display with 25 keys hex keypad
Power-full command like single stepping, break point, full clock execution, examine memory/ register
Uploading & downloading to and from PC in windows98/XP/NT
In-built power supply
Specifications
CPU operating @10/12MHz
8K user RAM using 6264 with battery backup using NICD Battery
One socket is provided for RAM expansion up to 64K.
16K bytes of powerful monitor EPROM using 27512
48 I/O lines using 2 Nos. of brought at 26 Pins FRC Connector to interface with IC-XX Series
Three Channel Timer/Counter using 8253 brought out at 10 Pins FRC Connector.
25 Keys Hexadecimal Keyboard and Six Digit Seven segment display using 8279 KBD Controller
Two External interrupts INT0 & INT1 are available at 40 pin FRC connector
RS-232C interface using brought out at 9 Pins D-Type Connector
Auxiliary RS-232C using RX/TX of brought out at 9 Pins D-Type Connector
Two modes of operation:
- Keyboard Mode
- Serial Mode
Powerful
Commands like Examine/ Edit Memory, Examine/Edit Register, Single
stepping, Execution, Break Point can be used through hex keyboard or PC
serial mode
Facility for Downloading/Uploading files from/to PC
All Address, Data, Control & Port lines are available on 40 Pins & 20 Pins FRC Connector
All IC’s are mounted on IC Sockets
Bare board Tested Glass Epoxy SMOBC PCB is used
In-Built Power Supply of +5V/1.5A, ±12V/250mA
Attractive Wooden enclosures of Light weight Australian Pine Wood
User's Manual with sample programs
270mm x 185mm x 105mm (L x W x H)
Weight 3 Kgs
Optional
PRINTER INTERFACE to interface with DOT MATRIX Printer
