CAT NO: DIDACTICNLE-Export-220190

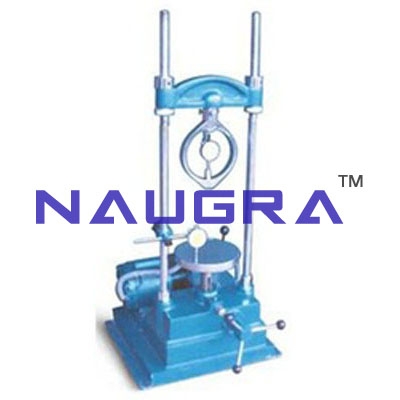

Load Frame Electrically Operated (5000 K.G.)- Engineering Lab Training Systems.
This unit consists of a cabinet which houses the gear system and
motor mounted on a sturdy angle iron base. The loading is done through
the bottom loading plate which is carried on a lead screw. The
advancement of this lead screw is secured against rotating by a sliding
key. The top bracket is adjustable in height and carries hexagonal
adapter for taking standard proving rings. The instrument is fitted with
a motor operating on 220/230 volts, single phase, 50 cycles: AC supply.
The load frame is designed for the following rates of travel of
the lead screw.
0.025 mm/min ; 0.05 mm/min.
0.125 mm/min ; 0.25 mm/min ; 0.5 mm/min.
625 mm/min ; 1.25 mm/min.
