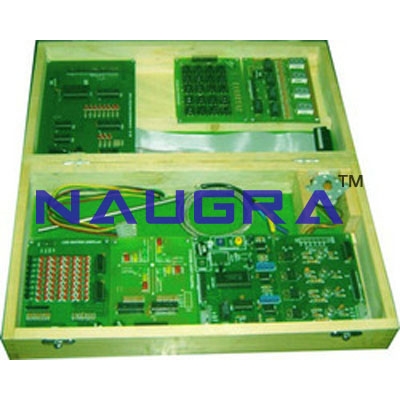

Interfacing Module For Electrical Lab Training

Interfacing Module For Electrical Lab Training

CAT NO: DIDACTICNLE-Export-081147

Interfacing Module For Electrical Lab Training Description and Tender Specification:

Interfacing Module.
Interfacing module are useful for teaching/training to interface with any microprocessor, microcontroller, embedded, VLSI trainer kits. This modules are designed to interface through 8255, MCU Port I/O’s, 50 Pin KXT Bus. Most of the interfacing module are supplied in australian pine wood enclosure. Interfacing Module   Connect to using 26 pin FRC connector Interfacing Module Connect to using 26 pin FRC connector Interfacing Module Connect to using 26 pin FRC Connector ADC module using ADC-0809  8 bit accuracy ADC chip  Eight Channel on-chip multiplexed ADC A/D Conversion time 100 micro sec SOC, EOC, O/P enable can be accessed by user Provision of 0 to 5V variable source using Potentiometer for One channel Eight channel analog inputs are provided at Screw Terminals User's Manual with Sample Programs         DAC module using DAC-0800                8 bit accuracy DAC chip                              Dual Channel DAC using 2 Nos. of DAC-0800 DAC Settling time 100 ns DAC Output are provided at 2 Test Points User's Manual with Sample Programs ADC module using AD-574 Chip 12 bit accuracy ADC chip                       Signle Channel ADC module A/D Conversion time 15 micro sec Analog inputs are provided at Screw Terminals User's Manual with Sample Programs Digital Input & Output Interfacing Module 8 Digital Inputs provided through 8 way DIP Switch 8 Input LED Indicators are provided 8 Output LED Indicators are provided Connect to 8255 using 26 pin FRC Connector User's Manual with Sample Programs Elevator Simulator Interfacing Module Four Floor Elevator Simulator model Each Floor LED indication are provided Up & Down Lift position indication by 10 Nos. of LEDs Four Keys are provided to access each floor Connect to using 26 pin FRC Connector User's Manual with Sample Programs IC Tester Interfacing Module for IC-7400 14 Pin IC-7400 IC is provided On-board two nos. of 14 pin socket and one no. of 16 pin Socket provided Connect to using 26 pin FRC Connector User's Manual with Sample Programs Four Digit Seven Segment Display Module Four Digit Seven Segment display lSerial in Parallel out shift register technique is used to display Two port pins are used to display in seven segment Connect to using 26 pin FRC Connector User's Manual with Sample Programs
