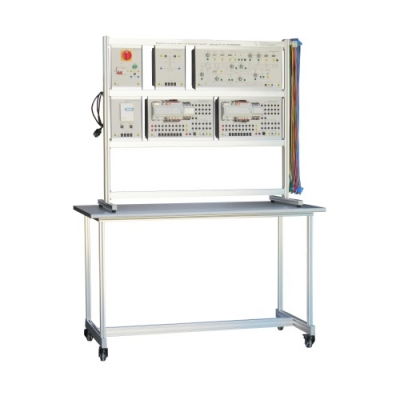

Home and Building Control

Home and Building Control

CAT NO: DIDACTICNLE-Export-202470

Home and Building Control Description and Tender Specification:

Home and Building Control.
Home and building control home Electrical Wiring & control Training System is a product which is helpful for students to get familiar with home wiring circuits.
This product provides a realistic training environment which is essential for every electrical engineering student and also for apprentice electrician.
It consists of Single Phase Energy Meter, MCB, Controlling Switches, Tube Light with Choke, Regulated Switch, Ceiling Fan, etc.
Good quality safe terminals and sockets are provided at appropriate places on board for power supply and load connections. Features:
Easy diagrammatic representation of circuits
Energy Meter, Voltage and Current display on Graphical LCD (128x64)
Test points are provided to measure the voltages at different points
Designed after considering all safety standards
Low Cost Training System Technical Specifications:
Supply Voltage : 230V AC ±10%, 50 Hz Energy Meter Specifications
Meter Constant : 1600 impulses /KWh
Display Counter : 100 impulses /Kwh (On LCD)
Single Phase MCB : 6 A
Load specifications
Tube light : 20 Watt / 220-240 V
Ceiling Fan : 50 Watt / 220-240 V
Maximum Load Current : 4 Amp
Measurement Display : Graphical LCD (128x64) Scope of Learning (To study the connection /measurement of):
Energy Meter and Consumer Unit
Voltage
Current
MCB wiring
Tube Light wiring
Two-Way Switch wiring
Short Circuit Fault
Switchboard
Ceiling Fan
Series-Parallel Operation on load, CAD/CAM LABORATORY EQUIPMENTS, educational cnc milling machines manufacturers, educational cnc LATHE machines manufacturers, Strength of Material Testing equipment supplier, mechanical engineering laboratory equipments suppliers, soil, bitumen, concrete testing, civil engineering laboratory equipments suppliers
