CAT NO: DIDACTICNMT0179

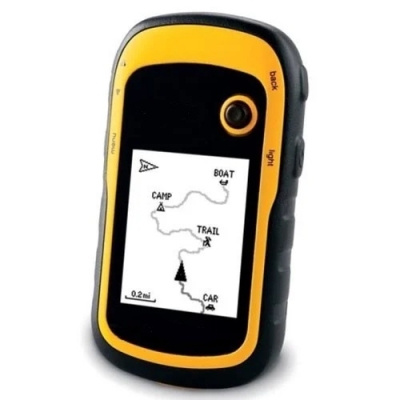

GPS Receiver.
GPS Receiver Use: to obtain altitude and X-Y positions
Standards:
BS EN 61108-1:2003.
Specifications:
Channels 14 (12 L1 Code and Carrier, 2 SBAS)
Integrated Real time SBAS1 ( dual-channel tracking)
Update Rate 1 Hz
Time to first Fix 30 seconds (typical)
Protocols TSIP, NMEA -0183 v3.0 (GGA, VTG, GLL, GSA, ZDA,GSV, RMC)
Real time corrections RTCM 2.x, RTCM 3.0,CMR,CMR+
Antenna Everest Multipath Rejection Technology
Beacon Correction Real Time correction from Beacon Receiver
Casing GPS, Antenna and Controller in Single Casing
ACCURACY AFTER DIFFERENTIAL CORRECTION
Post processed Submeter
Real-time (SBAS1 or external correction source): Submeter
SYSTEM
Operating System Microsoft Windows Mobile V 6.0 for Pocket PC
Processor Marvell 520 MHz XScale processor
Data Storage 1 GB non-volatile flash data storage
Display VGA display (480 x 640), Sunlight-readable color touchscreen
Bluetooth Bluetooth 1.2 Wireless
LAN 802.11 b/g wireless LAN
Battery Life All-day internally rechargeable Li-ion battery
Power
Low (no GPS or backlight) 1.8 Watts
Normal (with GPS and backlight3) 2.6 Watts
High (with GPS, backlight3, Bluetooth, w/l LAN)4 3.7Watts
Battery Internal 7500 mAh lithium-ion, 27.8 Watt-hours, rechargeable in unit.
Temperature
Operating -20 Deg to +60 Deg
Storage -30 Deg to +70 Deg
INPUT / OUTPUT
Communications USB 1.1 client via support module Serial via optional 9- pin RS-232 power/serial clip adaptor
Display 8.9 cm VGA (480 x 640 pixel) TFT, 16 bit (65,536) colors LED backlight
Audio Microphone and speaker, record and playback utilities
Interface Touch screen, 10 hardware control keys, power status LED, Audio System events, warnings and notifications Soft input panel(SIP) virtual keyboard and handwriting recognition software
