CAT NO: DIDACTICNLE-Export-205123

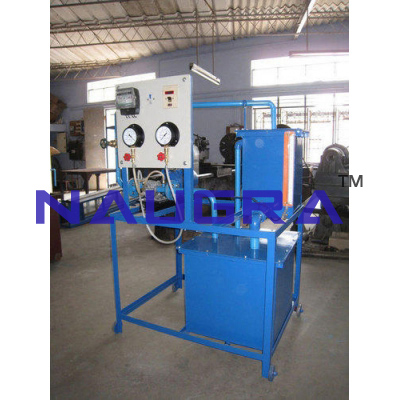

Gear Pump Test Rig
The present Gear Pump Test Rig is a self-contained unit
operated on closed circuit basis containing a sump tank. The set-up
consists of a Gear Pump having a pair of meshed gears, coupled with a DC
Motor. Power input to the DC Motor is varied by means of a Thyristor
controlled DC Drive to vary the RPM of motor. A RPM Indicator with
Proximity sensor indicates the RPM of Pump. Flow of fluid is measured by
using measuring tank and stop watch. Vacuum gauge is fitted on suction
line and Pressure gauge is fitted on delivery line to measure the
pressure.
Experimentation:
To determine total head, pump output, overall efficiency and pump efficiency.
To plot Graph: Head vs Discharge Pump efficiency vs Discharge.
Utilities required:
Electricity supply: Single Phase, 220 V AC, 50 Hz, 5-15 Amp
Combined socket with earth connection.
Oil: SAE 20W 40 (30 litrs)
Floor Area required: 1.5 x 0.75 m.
Technical details:
PumpSpeed:1500 RPM (max.)
Pressure: 5kg/cm2(max.)
Drive: 1 HP DC motor with Thyristor controlled DC Drive for variable speed.
Sump Tank Capacity: 35 Ltrs. (approx.)
Flow Measurement: Using Measuring Tank (Capacity 20 Ltrs.(approx.)) and Electronic Stop Watch
Pressure Gauge: Bourdon type
Vacuum Gauge: Bourdon type
RPM measurement: Digital RPM Indicator with Proximity sensor
Energy measurement: Electronic Energy meter, L&T make.
Instruction Manual: An ENGLISH instruction manual will be provided along with the Apparatus
.
