CAT NO: DIDACTICNLE-Export-081137

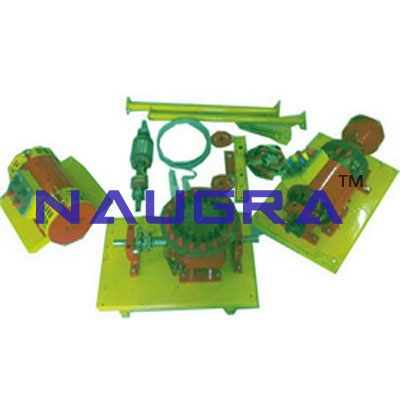

Electrical Machine Trainer.
Electrical Machine tutor/trainer is
a CKD (Complete Knocked Down) kit for building various types of
machines. It is useful for construction of 23 types of different
electrical machines.
It is useful in giving student confidence
& understanding constructional details & functional
characteristics of electrical machines. The experience achieved by
students, by themselves assembling various components viz, armature,
stator, slipring, caron, rocker, shaft, pulley, belt, dial,..Assembling
all components, fitting & tightening, Connecting with panel &
starting the system with desired results--this gets confidence in
students & the feel of industrial products.
Machine Trainer:
Specification
of 1HP electric machine trainer is given ahead. Electric machine
trainer is suitable for demonstrating theconstruction & working of
DC Motor/DC Generator (Shunt,series & compound) with Interpole,
Single phase capacitor runmotor, 3Phase Induction motor, (Sq. cage &
Slipring), AC Alternator (Single/Three Phase), Single phase universal
&repulsion motor, AC Synchronous Generator. Set will be providedwith
metering panel, power supply panel, for 3Phase & Singlephase
supply, DC Rectifier panel for DC Motor & DC/AC Singlephase variable
supply source complete with common base frame& friction braket
dynamometer. Rating of DC Prime mover willbe 1HP, 220V, 3000RPM, &
other rating will be according toequirement.
Assemblies:
1) DC MACHINES
· DC Shunt motor without Interpole
· DC Shunt motor with Interpole
· DC Series motor without Interpole
· DC Series motor with Interpole
· DC Compound motor without Interpole
· DC Compound motor with Interpole
· DC Shunt Generator without Interpole
· DC Shunt Generator with Interpole
· DC Series Generator without Interpole
· DC Series Generator with Interpole
· DC Compound Generator without Interpole
· DC Compound Generator with Interpole
· DC Seperately excited Generator without Interpole
· DC Seperately excited Generator with Interpole
2) AC MACHINES (Single Phase)
· Single Phase 4 Pole, Induction motor Capacitor Start/Run.
· Single Phase AC Series motor.
· Single Phase AC Generator Rotating Field
· Single Phase AC Generator Rotating Armature.
· Single Phase Universal motor.
3) AC MACHINES (Three Phase)
· AC 3 Phase Induction motor Squirrel cage type.
· AC 3 Phase Induction motor Slipring type.
· AC 3 Phase Generator Rotating field type.
· AC 3 Phase Generator Rotating Armature type.
· AC 3 Phase Synchronous Generator Rotating field type.
* This
is the Basic model, Advanced models are available on request with
a wide range of Advanced Machines & Drives as per your request.
Electrical
Machine tutor/trainer is a CKD (Complete Knocked Down) kit for building
various types of machines. It is useful for construction of 23 types of
different Electrical Machines.
