CAT NO: DIDACTICNLE-Export-202464

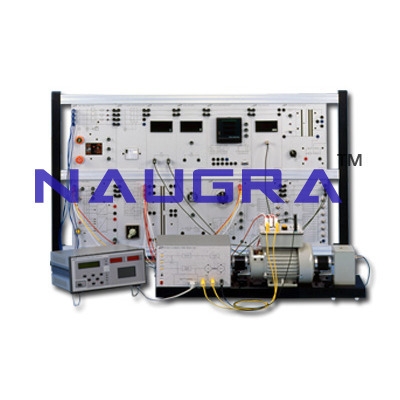

Electrical Machine Trainer.
Electrical machine trainer Trainer consist of 3HP DC motor & synchronous motor, , RPM test, voltmeter ampere meter panel. Input dc , Consist of 2 nos of (96x96mm) Analog meters one each for 3 ph. & 1 ph.
Training Panel Board Various experiments that can be performed on the trainer set.
Load test of the synchronous generator
Starting the dc shunt STrter
Finding the efficiency of electrical machine
Loading the generator outpstRut with dc shunt motor
Magnetizing characteristics of shunt generator Features
3 phase induction motor coupled 3HP, 440V, 1500 RPM shunt generator 1KW. A small DC Motor for ½ hp for loading the shunt generator
Motor generator set is copper wound with class b insulation.
The all motors are mounted on the high grade ms angle frame and can be easily mounted in the ground foundation.
It is supplied with one MS powder coated Electrical panel fitted with high insulation Bakelite sheet.
Bakelite sheet thickness is 6mm
Analog ammeter and voltmeter are provided on the front panel sheet.
DOL starter of 3hp rating mounted on the panel with the connections of 3 phase motor.
On board DC power supply to operate the field control voltage of the shunt generator
Short Circuit protection with the MCB.
4mm terminals to make connections
Sufficient nos. of patch cords for easy connections.
All parts on front panels are properly labeled.
Supplied with tachometer to read the speed of the motors
Supplied with complete operating instruction manual
All connections and circuits are properly labels for easily understanding,
