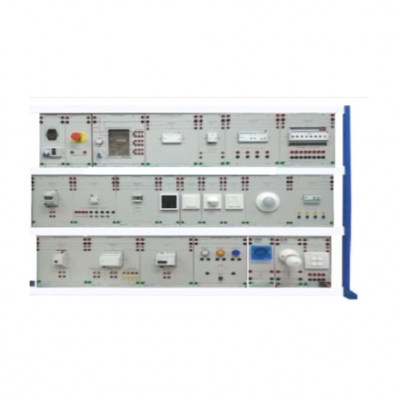

Electrical Installation Trainer.
The system must consists of a number of modules which are suitable for the study of electrical measurement, electrical installation and for the troubleshooting of electrical installations.
Each module contains real electrical components such as contactors, switches, lamps, push buttons, timers, circuit breakers and relays. These modules can be arranged on the panel frame stand in a variety of configurations to make many different and interesting installations. Connections between the components or between the modules are made by using 4 mm test leads which plug into 4mm color coded heavy-duty binding posts. This will then allow the students to do the wiring quickly and with many variations
The trainer comes complete with laboratory manual which contains many experiments on electrical installation technology. Mobile training frame stands is available to mount the panels. Storage cabinets must be added to provide a convenient place to store the panel modules.
Unit should be upgradeable and have the ability for Inter connectivity between training systems in the teaching laboratory. Manual provided must clearly show the following educational topics of experiments are met;

Experiment topics coverage:
Residential Switches and Sockets Familiarization
Industrial Sockets and Plugs Familiarization
Special Purpose Switches
Lamps and Fitting Familiarization
Residential Electrical Installation
Intercom Installation
Door/ Bell Switch  and Buzzer Installation
Controlling Single Lamp from Two Locations and Three Locations
Remote-Controlled Load Circuit
Timer-Controlled Lamp Circuit
Latching Relay Circuit
Three Phase Circuit- Voltage Measurement
Three Phase Circuit- Current Measurement

Specifications:
The modules feature real industrial components that easily and securely fit into the training panel frames.
Special powder coated aluminum rails for plexiglass panels, which gives secure and firm fitting modules.
Panels must be quickly arranged to conduct many experiments.
All electrical connections for each component are brought out to 4mm color-coded heavy-duty binding posts. Wiring from the component to the terminals is also color-coded.
Interconnections between the panels and components are made via 4mm stackable test leads.
Stackable test leads allow multiple connections from a single point, which is very useful when taking electrical measurements. Therefore the student is able to relate the circuit theory with the practical aspects of the real component and actual wiring connections.

The trainer will include:
Residential Switches:
Mounted on Plexiglass panel with 4mm terminals
Switch, Surface mount, 1 way, 2 terminal, 10A, 1 gang,: (4 modules)
Switch, Surface mount, 2 way, 3 terminal, 10A, 1 gang,: (4 modules)
Switch, Surface mount, 2 way, 4 terminal, 10A, 1 gang,: (4 modules)
Switch, Surface mount, Intermediate, 10A, 1 gang,: (4 modules)
Switch, Surface mount,1 way, 2 terminal, 10A, 2 gang,: (2 modules)
Surface mount, 2 way, 3 terminal, 10A, 2 gang: (2 modules)
Switch, Surface mount, 2 way, 4 terminal, 10A, 2gang: (2 modules)
Switch, Surface mount, marked "Bell": (2 modules)
Switch, Surface mount, illuminated: (2 modules)
Switch, Surface mount, dimmer: (2 modules)
Bell/Door opener push button: 2 SPST switches 250Vac, 10A (1 module)

Sockets Sets:
To include the sockets mounted onto panel with 4mm terminals, each socket is to include a matching plug
1 Phase Socket with switch, 13A, 3 prong, 1 gang: (3 modules)
1 Phase Socket with switch, 13A, 2 prong, 1 gang: (2 modules)
1 Phase Socket, with switch, 16A, 1 gang: (5 modules)
1 Phase Industrial Socket, with cover, 16A, 2 Pole & Earth: (2 modules)
3 Phase Industrial Socket, with cover, 16A, 2 Pole with neutral & Earth: (2 modules)

Electrical Switches:
Toggle Switch: (4 modules)
Push Button, 1N.O 1N.C: (2 modules)
Cam Switch, ON/OFF: (2 modules)
Selector Switch (for 3 phase amperage measurement): (1 modules)
Selector Switch (for three phase voltage measurement and three-phase): (1 module)
Stepping relay for sequencing; 2 SPST switches with 4 sequencing:: (1 module)
Latching relay: 2 relays with Bistable operating contacts, coil, 24Vac, 3 contacts, 48Vac, 2A: (1 modules)

Circuit Breakers:
MCB, 1 Phase, 6A: (5 modules)
MCB, 1 Phase, 16A: (2 modules)
MCB, 3 Phase, 16A: (1 module)
ELCB, 1 Phase: (1 module)
ELCB, 3 Phase: (1 module)
NFB, 1 Phase: (1 module)

Lights and Fixtures:
To include matched lamp holders complete with lamps mounted with 4mm terminals.
Incandescent lamp holder with bulb, E27, 220V: (4 modules)
Incandescent lamp holder with bulb, E14, 220V: (4 modules)
Fluorescent lamp holder with starter and ballast, 10W: (2 modules)
Fluorescent lamp holder with starter and ballast, 20W: (2 modules)
Mercury lamp holder with lamp: (1 module)
Pilot signaling lights, 24Vac, set of three (red, yellow, green): (1 module)

Controls and Components:
Control transformer, input 240Vac, output 6/12/24: (2 modules)
Control relay: 24Vac, 2N.O, 2N.C: (2 modules)
Control relay: 240Vac, 2N.O, 2N.C: (2 modules)
Timer: 24 hours: (1 module)
Door Bell, 220Vac: (1 module)
Buzzer, 12Vac: (1 module)

Measuring Instruments:
Mains Input Panel for Single and three-phase: (1 module)
Set of stackable 4mm connection test leads: (1 Set)
Digital Ampere Meter: (1 module)
Voltmeter: 0 to 500Vac: (1 module)
Analog Ampere Meter: 0 - 5A: (1 module)

Telephone/Intercom Modules:
Door phone signaling board: (1 module)
Master phone/intercom (2 rooms + door station + buzzer): (1 module)
Sub station phone/intercom: (2 modules)
Signaling push button (maid/porter/valet): (1 modules)
Electric Door lock 12V: (1 module)
Training Panel Frames:
Four Level Mobile Frames with 4 rails
Additional Items:
Double Door Storage Cabinet with slots to accommodate the panels
Sample Training experimental manual to be provided during the bidding process to ensure all experiments are met.
