CAT NO: DIDACTICNLE-Export-205115
DESCRIPTION
Aerodynamic Tunnel of 1200*1200mm, principal characteristics:
* Adequate size for demostration tests and teaching.
* Suitable for three-dimensional models.
* Test Chamber builts with transparent materials.
* Low operation and maintenance cost.
* Suitable for smokes visualization test.
* AC motor-ventilator gropu, monophasic, with frequency variator.
SPECIFICATIONS
*The
Aerodynbamic Tunnel of 1200*1200 mm section for testing, witha
longitude of 2000 mm is of the Eiffeltype, aspirate and of open circuit,
and allows us to carry out tests of measuring formces and aerodynamic
field on models of structures, construcitons, land vehicles and small
planes. * Its power plant, formed by 4 standard type ventilators, of 10
CV of power each one and 900 mm in diameter, has kept the final cost of
the product low, while at the same time that assuring a simple and
economicmaitenance. Nevertheless, this aspect does not prejudice the
quality of the vein, of great uniformity and low turbulence level,
thanks also to the adequate design of the contraction, neither does it
affect the speed that is reached, this being about 36m/s in a vacuum.
*The
tunnel is built basically of wood, with a steel support structure, and
windows for viewing inside the test chamber. Its wood panels are
easilyreplaceable, if through wear and tear, or for any other motive,
its aspect or mechanical capacity should make it necessary. This has the
additional advantage of the ease with which new instrumentation can be
added, since the corresponding supports and leads and conduit passes are
easily made.

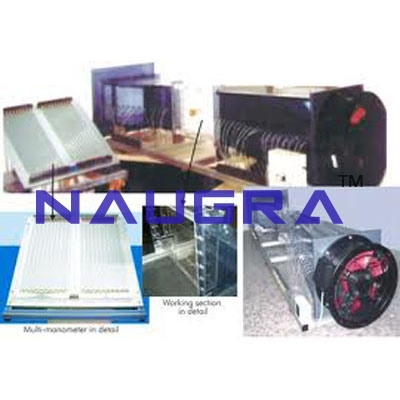

*It has a Pitot pipe for measuring the speed of the
incident flow. To this instrumentation, a multimanometer or a scanner
system for the simultaneous measurement of pressures can be added, as
well as a small scale of six components for measuring forces. A smoke
generator can also be connected for flow visualization Fluid Mechanics Lab Equipments manufacturers.
