CAT NO: DIDACTICNULK2- -0081

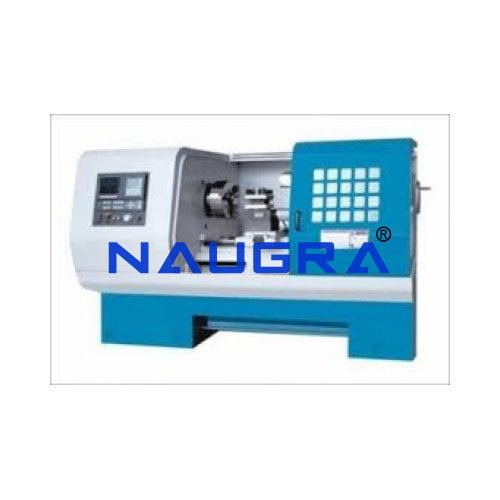

CNC LATHE MACHINE.
Max. Swiing Over Bed: 360mm
Max. Cutting Diameter for Axle Partd 150mm
Max. Cutting Diameter forDisc Partd 250mm
Max. Cross Travel (X) 150mm
Max. Longitudinal Travel (Z) 320mm
Rapid Feed for Axis X 12/10 m/min
Rapid Feed for Axis Z 20/16 m/min
Max. Speed of Spindle 6000/4000 r/min
Taper Bore of Spindle MT.5
Spindle Nose A2-5
Hydraulic Chuck 6
Number of Tools 8
Outside Dia. Of Cutting Tool Shank 20x20mm
Hydraulic Tailstock Sleeve Diameter 80mm
Tailstock Sleeve Travel 90mm
Bed Structure 45o slant bed integrated into stand
Guide Ways X, Z Precision linear ball rail
Main Motor Power (X/Z) 5.5/7.5kW(servo)
STANDARD ACCESSORIES
Control systems Software and necessary cabling
Accompanying Servo motors (2 Axis)
With Appropriate motor
And with accompaning Inverter
8 Post Hollow Tool Post
Hydraulic Chuck
Tailstock
Auto-Lubrication
Solid Hydraulic Chuck
Auto Clean Chip Tray
