CAT NO: DIDACTICNLE-Export-205121

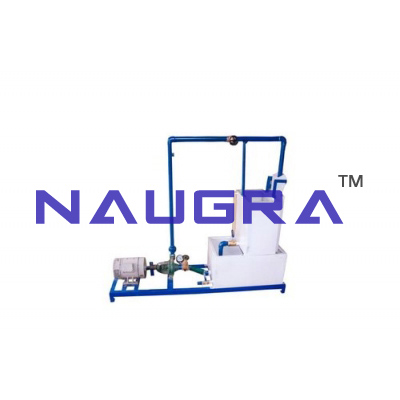

Centrifugal Pump Test Rig
The present Centrifugal Pump Test Rig is a self-contained unit
operated on closed circuit basis containing a sump tank. The set-up
consists of a Centrifugal pump coupled with a DC Motor. Power input to
the DC Motor is varied by means of a Thyristor controlled DC Drive to
vary the RPM of motor. A RPM Indicator with Proximity sensor indicates
the RPM of Pump. Flow of water is measured by using measuring tank and
stopwatch. Vacuum gauge is fitted on suction line and Pressure gauge is
fitted on delivery line to measure the pressure.
Experimentation:
To determine total head, Pump Output, overall efficiency and pump efficiency of the centrifugal pump
To plot Head vs Discharge, Pump efficiency vs Discharge, Pump Output vs Discharge
Utilities required:
Water Supply.
Drain.
1kW, 220V AC, Single Phase.
Floor Area 2 x 1 m
Technical Details:
Pump:Kirloskar Make, Capacity 1 HP Speed 2800 RPM (max.), Head 12 m(max.) Medium Flow:Clear Water
Drive:1 HP DC Motor with Thyristor controlled DC drive for variable speed.
Sump Tank:Capacity 110 Ltrs.
Flow Measurement:Using Measuring Tank with Piezometer,Capacity 70 Ltrs.
Stop watch:Electronic.
Pressure Gauge:Bourdon type
RPM measurement:Digital RPM Indicator with Proximity sensor.
Energy measurement:L&T make, Electronic Energy meter.
Instruction Manual:An ENGLISH instruction manual will be provided along with the Apparatus
Tanks will be made of Stainless Steel.
The whole set-up is well designed and arranged in a good quality painted structure.
.
