CAT NO: DIDACTICNLE-Export-126107

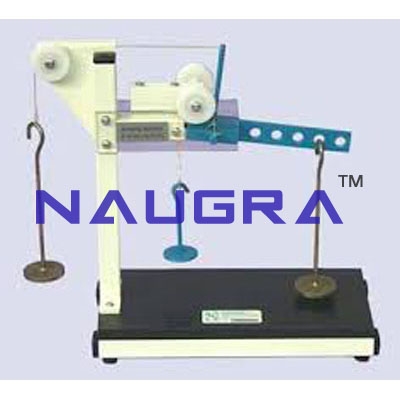

Bending Moment Apparatus- Engineering Lab Training Systems.
Technical Description
This demonstration unit facilitates the
experimental investigation of the bending moment in a bar loaded with
point forces. The section principle commonly used in mechanics can also
be demonstrated. Through the use of a rigid, but sensitive to moment,
low friction joint at 1/3 of the span and a dynamometer, it is possible
to record the measurements directly from the bar. The deflection of the
bar as a result of the travel of the load gauge and the horizontal
alignment can be compensated and regulated using adjustment bolts. The
bar is loaded with graduated sets of weights that can be attached at any
point on the bar. The support rollers are equipped with ball bearings.
