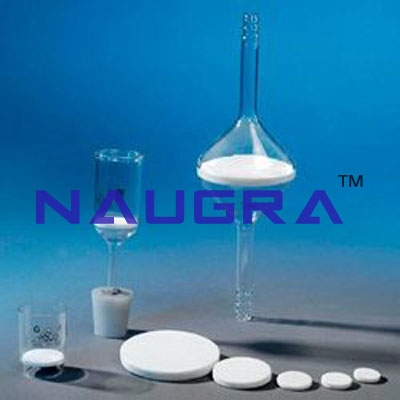

The glass fiber structure of sintered filters and results in a more abrasion resistant surface. Being fused together on a greater surface area, the particles do not detach from the filter body as easily as spheroid granules. Being made entirely of heat resistant borosilicate glass, resistance to thermal shock and chemical attack is unimpaired. PISCOTM sintered filters are manufactured from 100% low expansion borosilicate glass grains, cleaned, and 100% chemically pure. PISCOTM sintered filters are extensively used for the filtration of both liquids and gases. Features : 100% chemically pure Extensively used for the filtration of both liquids and gases Customized designs and specifications are welcome Available in a host of sizes and dimensions Applications : Medium filtration & washing of gases Analytical work Collection of fine precipitates Gas dispersion. Porosity Grade Pore size approx. (In microns) Principal uses 00 250+ Very coarse filtration, ideal for high viscous liquids. 0 150-250 Coarse filtration, gas dispersion & support for other filter materials 1 90-150 Coarse precipitate filtration, gas dispersion, coarse grain material filtration. 2 40-90 Medium & crystalline precipitate filtration, medium filtration & washing of gases 3 15-40 Fine gas filtration & dispersion, mercury filtration, fine grain material filtration, collection of fine precipitates, analytical work with medium precipitates 4 5-15 Valves for mercury collection of very fine precipitates. Analytical work with fine precipitates. 5 2-5 Very fine precipitates, analytical work, general bacteria filtration.....
Product Code: DIDACTICLABNLE-Export-040001

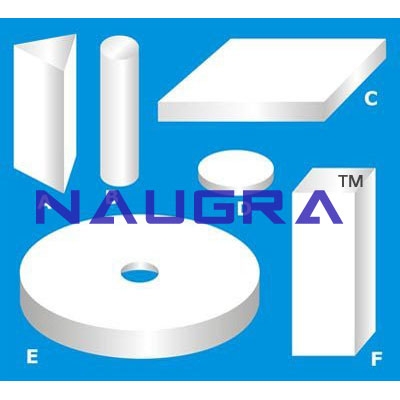

Sintered Filter Discs. Available in a host of sizes and dimensions, our Sintered Glass Filter Discs have gathered wide appreciation owing to their precision performance. Different types of thickness and porosities of our Sintered Filter Discs make them a highly reliable product in the Lab Ware Industry. We are well reckoned as one of the prominent Special Sintered Filter Disc Manufacturers in Kolkata, West Bengal. Features Available in different thicknesses and porosities. Highly reliable. Excellent resistance to harmful chemicals. Made of superior quality glass. Specifications Small size - O.D. 6.5 mm. (tolerance ±0.1 mm.), Thickness : 2.2 mm. to 2.5 mm. Porosity: G-1, G-2, G-3 & G-4 With a hole in center – Thickness : 3.5 mm. to 8 mm., Centre I.D.: 4, 5, 6 mm. or above, O.D.: up to 100 mm, Porosity: G-1, G-2, G-3 & G-4 Rectangular Plate – Porosity: G-0, G-1, G-2, G-3 & G-4, Max. Size: 150 mm X 100 mm., Thickness: 4 mm. to 10 mm....
Product Code: DIDACTICLABNLE-Export-040002

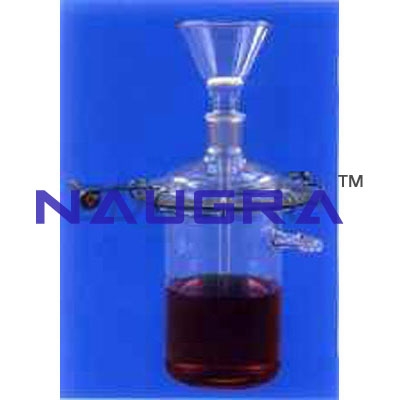

Complete with flanged jar, flanged lid, funnel and 250 ml. beaker. Filtering Apparatus Witt's,Complete with flanged jar,flanged lid,Funnel and 250 ml. beaker.....
Product Code: DIDACTICLABNLE-Export-040003

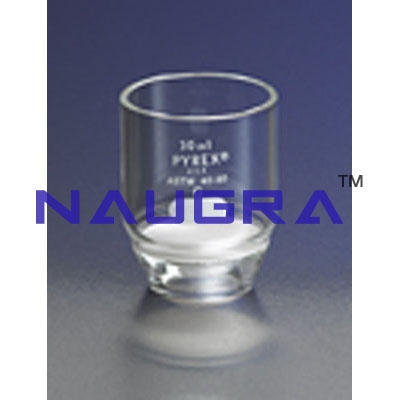

Gooch type with Sintered Disc of Porosity G-1 or G-2 or G-3 or G-4. Note: Please mention Porosity of Sintered Disc, while placing order. Cap. 15 ML 30 ML 50 ML....
Product Code: DIDACTICLABNLE-Export-040004

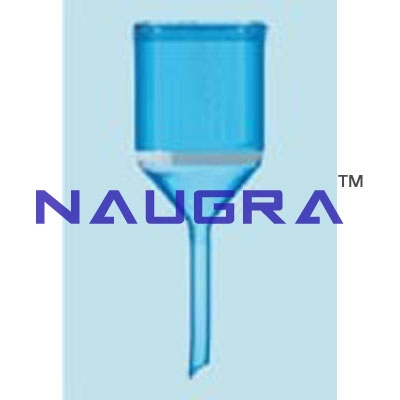

With sintered disc of porosity G-1 or G-2 or G-3 or G-4, plain stem. Note: please mention porosity of sintered disc, while placing order.....
Product Code: DIDACTICLABNLE-Export-040005
Complete, Filter Flask with Socket and buchner funnel with Sintered Disc of Porosity G-1 or G-2 or G-3 or G-4, having cone. Note: Please mention Porosity of Sintered Disc, while placing order. Flask Cap. ml. Crucible Cap. ml. Joint 250 80 24/29 500 200 24/29 1000 500 39/32 2000 1000 39/32....
Product Code: DIDACTICLABNLE-Export-040006

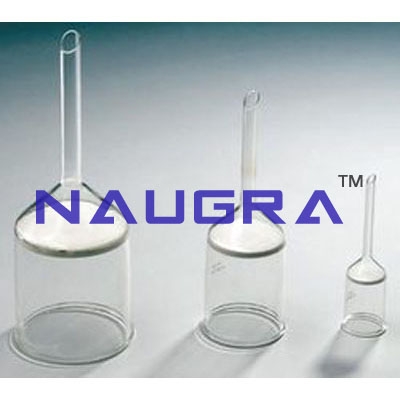

With Sintered Disc of Porosity G-1 or G-2 or G-3 or G-4, cone at stem Note: Please mention Porosity of Sintered Disc and cone size, while placing order.....
Product Code: DIDACTICLABNLE-Export-040007

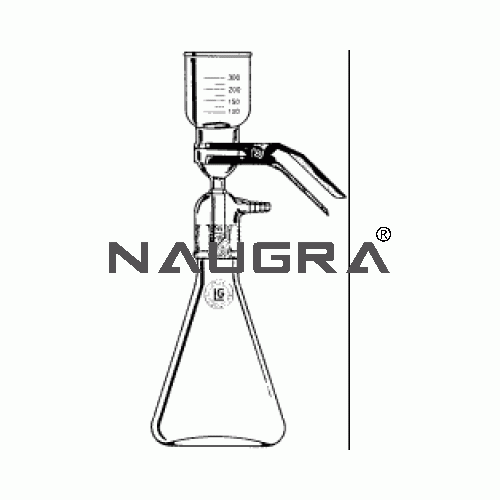

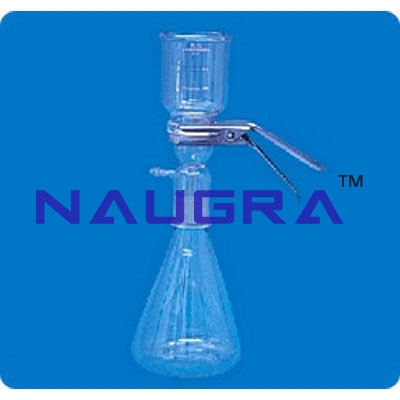

With support for membrane, funnel, flask and clamp standard joint fitting.....
Product Code: DIDACTICLABNLE-Export-040008

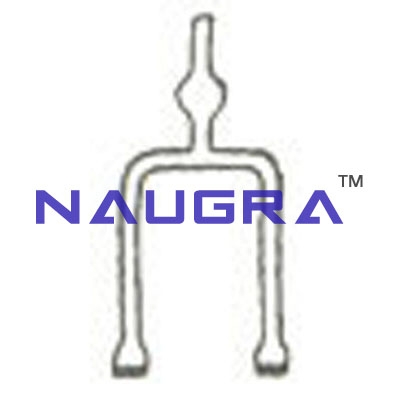

With two limbs of 100 mm long and 58 mm apart disc diameter 10 mm and porosity 4 Other Information Pay Mode Terms: L/C (Letter of Credit)....
Product Code: DIDACTICLABNLE-Export-040009
....
Product Code: DIDACTICLABNLE-Export-040010
