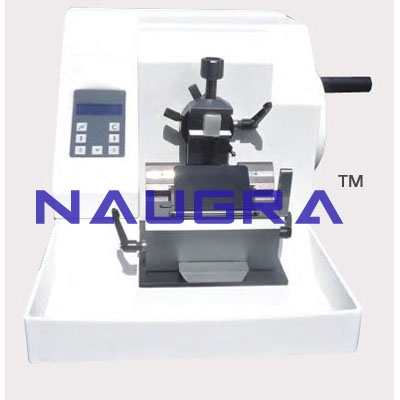

Semi Automatic Microtome It comes with an advanced imported drive system for smooth trimming and sectioning, LCD screen displays section and trimming thickness range, number of sections etc. It comes with a lockable handwheel in any position , huge volume waste tray for easy operation, interchangeable specimen clamp along with a safety alarm system. Its high precision calibrated controls make accurate positioning for re-cuts possible Technical Specifications Section Thickness Setting Range 0.25~60 µm Trimming Thickness Setting Range 0.25~60 µm Setting values 0.25~ 1-µm increment step 0.25 µm 1~10 µm increment step 1 µm 10~ 20-µm increment step 2 µm 20~ 60-µm increment step 5 µm Minimum setting value 0.25 µm....
Product Code: DIDACTICLABNLE-Export-123001

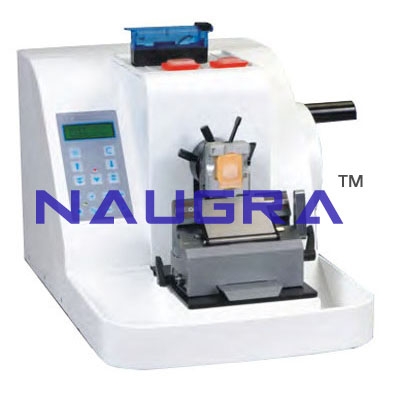

Fully Automatic Microtome is a fully automatic microtome based on latest technology that functions on ball bearing guides and a microprocessor based control system with following specifications. It incorporates automatic memorization and recovery, a hand wheel which is lockable in any position, high volume trash tank, convenient specimen clamp, disposable embedding cassette clamp and paraffin clamp, safe alarm system, dormancy protection and advanced imported drive system. Smartly located feather touch buttons can control all the functions effortlessly. It can be used for semi-thin to thick sectioning of both soft and hard specimens. Technical Specifications Section Thickness Setting Range 0.5~100 µm Trimming Thickness Setting Range 1~600 µm Setting values 0.5~2 µm increment step 0.5 µm 2~10 µm increment step 1 µm 10~20 µm increment step 2 µm 20~100 µm increment step 5 µm Minimum setting value 0.5µm Vertical specimen stroke 60 mm....
Product Code: DIDACTICLABNLE-Export-123002

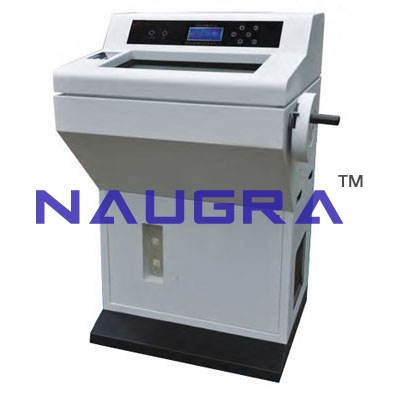

Semi Automatic Cryostat Microtome: The cryostat is ergonomically designed keeping in view user needs and safety. It incorporates an optimized cooling system with double compressor for rapid specimen freezing and smooth precise orientation that gives high quality sectioning in histology, with section thickness range of 1-60µm, trimming thickness range 30µm-95µm, with freeze chamber temperature range of -1oC to - 30oC, pro-environment refrigerant, a rapid refrigeration mode, LED Screen which can display data such as sample travel, section thickness and temperature. Easy to operate control panel with controls for temperature and time. Equipped with a closed drainage system that ensures collection of condensed fluids in a container. Salient Features : Specimen retraction function protects the specimen from blade injury Trimming/Sectioning button makes it easy to switch to the desired mode Rapid Refrigeration Mode allows desired temperature drop in 60mins Working area is easy to clean and disinfect Easy to read LED screen Ergonomical design Technical Specifications Sectioning Thickness Range 1µm- 30µm, in 1µm increments 30µm-60µm, in 5µm increments Trimming Thickness Range 30µm-95µm, in 5µm increments Freeze Shelf Lowest Temp - 40oC Cooling down time to -30oC 60 mins Lowest temp. of Peltier unit on freeze shelf -55oC freeze shelf Maximum Specimen Size 35 mm x 35 mm Specimen Vertical Stroke 70 mm Specimen Specimen Horizontal Stroke 20 mm....
Product Code: DIDACTICLABNLE-Export-123003
