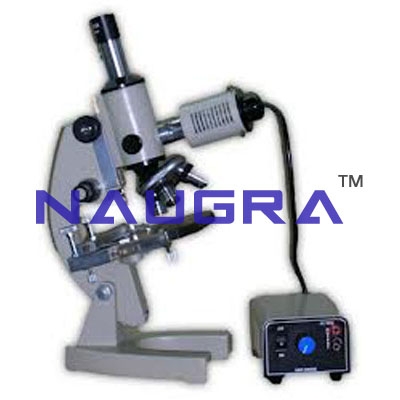

Monocular inclinable body having coarse and fine motion. Bright field horizontal illuminator with iris diaphragm and slots for dropping filter. Triple revolving nose piece. Supplied with variable light control transformer and following optics in box. Objectives : M10x and M45x (SL) Eye Piece : WF 10x and H 15x (a) Complete as above with 'A' grade indian optics. (b) Complete as above with all optics having impoted lenses.....
Product Code: DIDACTICLABNLE-Export-133001

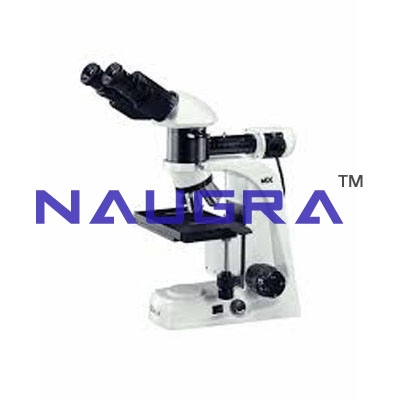

Fitted with Binocular head assembled from hard coated prisms. Bright field horizontal illuminator with centring provision, Quadruple revolving nose piece, straight tube for photomicrography, special graduated mechanical stage, supplied with variable light control transformer and following optics in box. Objectives M10x and M45x (SL) Eye pieces WF 10x and H 15x (Paired) (a) Complete as above with ‘A’ grade Indian optics. (b) Complete as above with all optics having impoted lenses.....
Product Code: DIDACTICLABNLE-Export-133002

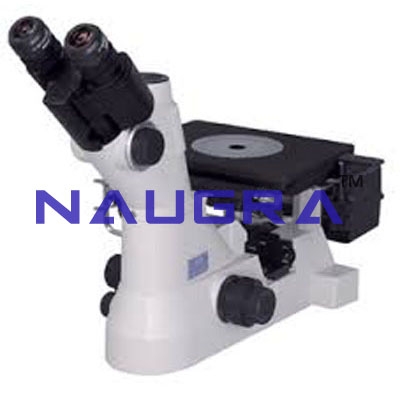

A latest binocular inverted metallurgical microscope having co-axial coarse and fine motion assembled on ball bearing guides, equipped with horizontal illuminator with centring provision, field and aperture diaphragm and slots for dropping filters. Built in base variable solid state transformer. Large sturdy stage with X-Y axis movements. Coarse and fine focusing knobs, supplied with two colored filters in metal mount, raxine cover, complete in box. Objective M5x, M10x, M20x, M40x/45x Eye pieces WF 10x (Paired) (a) Complete as above with all optics having imported lenses. Note : Extra charges for Trinocular head instead of Binocular head.....
Product Code: DIDACTICLABNLE-Export-133003
This is a simple and convenient machine for rough and fine polishing of metallurgical specimen. This specimen after mounting and after being polished by hand on emery paper is polished on this machine. The specimen is held against a rotating flat disc, on which a polishing cloth, impregnated with suitable polishing media such as silicon carbide powder, alumina or diamond powder, is stretched. Disc polishing gives the specimen a scratch free mirror like finish.....
Product Code: DIDACTICLABNLE-Export-133004

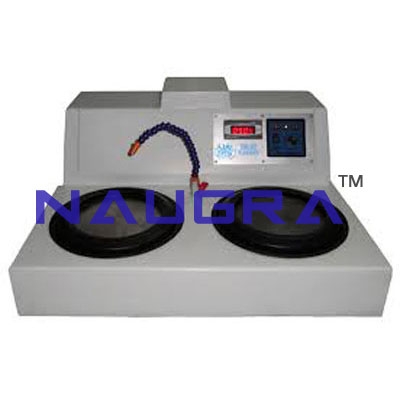

The disc polisher consists of a 20 cm balanced polishing disc mounted on a steel spindle. The spindle is located on heavy duty ball bearing. The disc is easily removable for quick changing of the polishing cloth or paper, which is fastened on the disc by mean of spring or rubber girdle on the rim of the disc. Around the disc is an aluminium drain jacket fitted with drain tube. The speed of the disc can be continuously varied from 450 to 1200 r.p.m. A metallic reservoir is also provided for dropping water on the specimen. The machine is electrically operated suitable for operation on 220 / 230 volts single phase . A . C . supply. 1. Single Disc 2. Double Disc....
Product Code: DIDACTICLABNLE-Export-133005

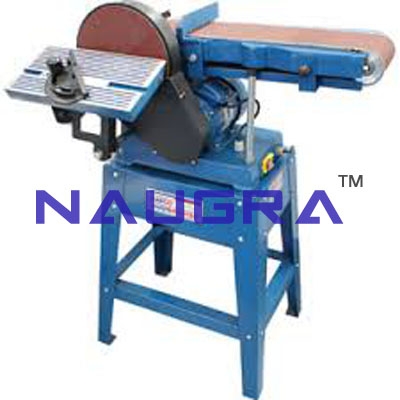

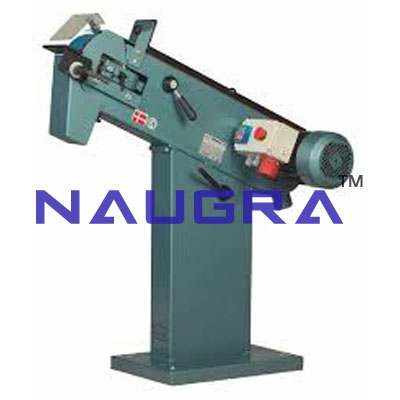

Designed for initial rough grinding. Also the grinder provided has rigid construction and completely enclosed body which help in easy operations. These also have full cover mask in their base and dynamically well balanced rollers. Specifications : Working on 220V in single phase operation. Manual belt -100/915 mm Endless belt pulleys Balanced pulleys Polishing Motor Power ½ H.P Single/Single Phase Application areas : Metallurgical Laboratory Forging Industry Fasteners Industry Casting Industry Iron & Steel Industry Auto Parts Ancillaries....
Product Code: DIDACTICLABNLE-Export-133006

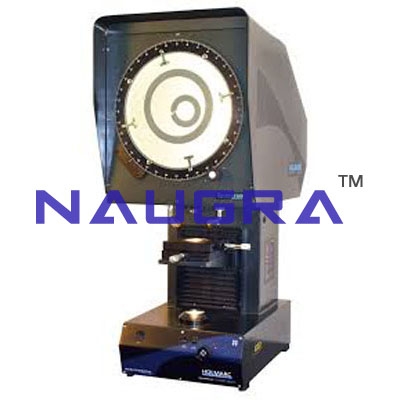

Having 200mm dia rotatable screen with vernier reading of 1 minute scale. Halogen bulb (12v 100w) with solid state variable light control built in transformer workable on 220V AC main. Stage X-Y movement on ball bearing slides. Having Micrometer (50mm dia) L.C.01 or 0.005mm fixed magnification 10x or 20x.. Having transmitted light in card board box.....
Product Code: DIDACTICLABNLE-Export-133007
Having 300mm dia rotatable screen with vernier reading of 1 minute scale. Halogen bulb (12v 100w) with solid state variable light control built in transformer workable on 220V AC main. Stage X-Y movement on ball bearing slides. Having Micrometer (50mm dia) L.C.01 or 0.005mm fixed magnification 10x or 20x.. Having transmitted light in card board box. Optional Accessories: Graduated rotatable stage for angle measurement....
Product Code: DIDACTICLABNLE-Export-133008

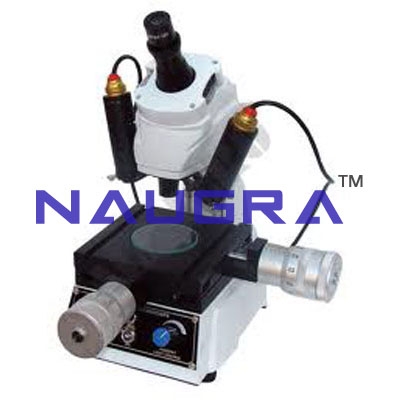

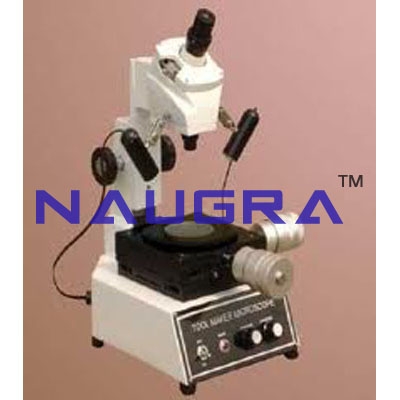

With X-Y movement on ball bearing slides. Having Micrometer (50mm dia) L.C. 0.01 or 0.005mm with Goniometer. Fixed magnification 30x. Having both transmitted & incident light in wooden box. Accessories for Tool Makers Microscope Depth Measuring attachment Centre holding device attachment V-Block V-Support Measuring Eye Piece with reticles(each) i) Graph ii) Metric threads iii) Concentric circles iv) Cross v) 60° angle....
Product Code: DIDACTICLABNLE-Export-133009
With X-Y movement on ball bearing slides. Having Micrometer (50mm dia) L.C. 0.01 or 0.005mm with goniometer. Fixed magnification 30x. Having both transmitted & incident light in wooden box. Accessories for Tool Makers Microscope Depth Measuring attachment Centre holding device attachment V-Block V-Support Measuring Eye Piece with reticles(each) i) Graph ii) Metric threads iii) Concentric circles iv) Cross v) 60° angle....
Product Code: DIDACTICLABNLE-Export-133010

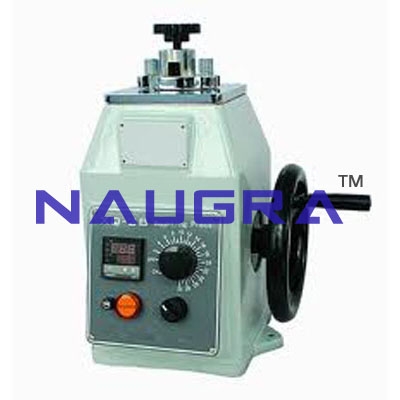

This machine is used for mounting the specimen in a Bakelite Powder and also to handle properly the specimen during polishing. The unit is of a rugged construction and is activated by a hydraulic press , with a pressure gauge to read the pressure being applied while mounting. The press is to be supplied complete with mould heater and thermostat with 25 mm dia mould assembly.....
Product Code: DIDACTICLABNLE-Export-133011

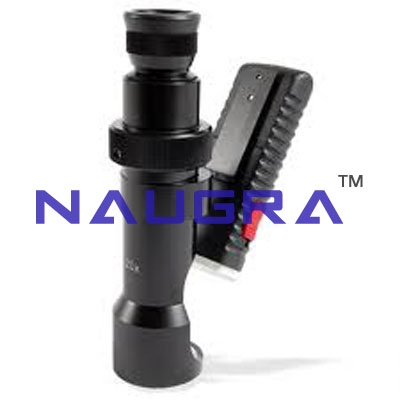

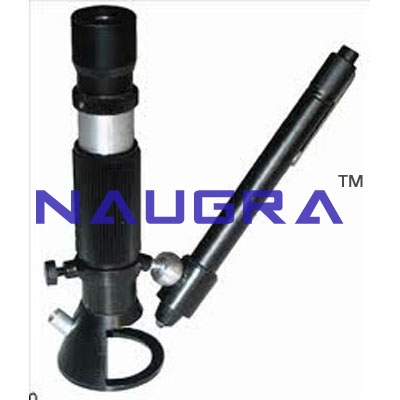

7mm Graticule Scale Magnification : 30x Field of view : 9Mm Measuring Accuracy : 2-3 microns.....
Product Code: DIDACTICLABNLE-Export-133012
7mm Graticule Scale Magnification : 30x Field of view : 9Mm Measuring Accuracy : 2-3 microns.....
Product Code: DIDACTICLABNLE-Export-133013

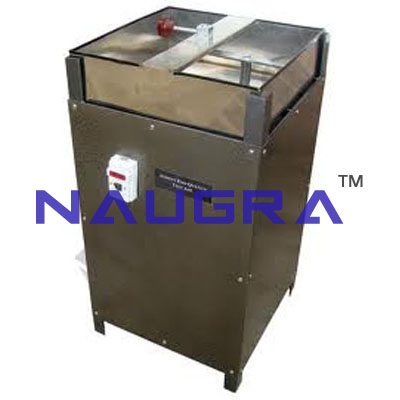

This apparatus is used for determining the Hardenability of steel by an experiment called Quench Test. This experiment will enable the student of know about the Hardenability characteristics of different alloying element. 1. Mild Steel Model 2. Stainless Steel Model....
Product Code: DIDACTICLABNLE-Export-133014

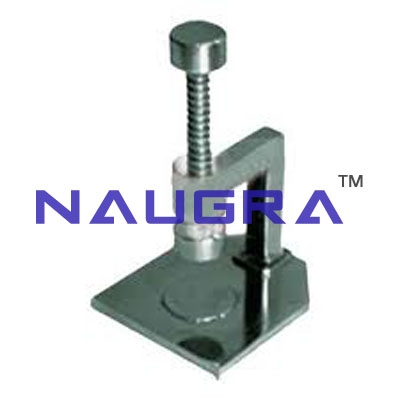

The Press has unique wedge design helps specimen clamping, perfectly parallel to the grinding disc ensures uniform lapping/grinding. The Press method for ensuring that the metal surface is exactly perpendicular to the optical axis of the microscope.....
Product Code: DIDACTICLABNLE-Export-133015
Outer shell made out of thick mild steel duly finished in attractive stoving enamel paint. Fitted with grooved refractory for supporting the heating elements made out of kanthal wire and are easily replaceable. Maximum temp 1000°C with working temp. 940°C controlled by SUNVIC energy regulator. Complete with indicators, pyrometer, thermocouple – thermal fuse etc. workable on 220V AC 50Hz single phase. Muffle Sizes : 225x100x100mms (9”x4”x4”) 250x125x125mms(10”x5”x5”) Optional(Extra Cost) Digital Temp. indicator cum controller Micro Processor PID digital Temperature Indicator cum Controller Note: Industrial Muffle Furnace temp range up to 1200 degree C also available.....
Product Code: DIDACTICLABNLE-Export-133016

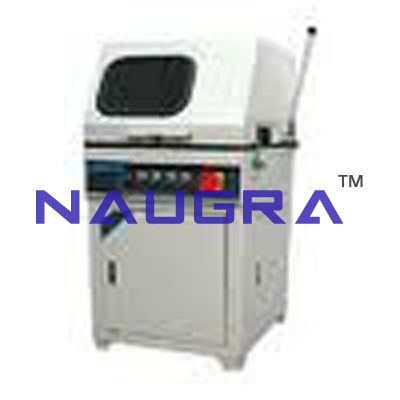

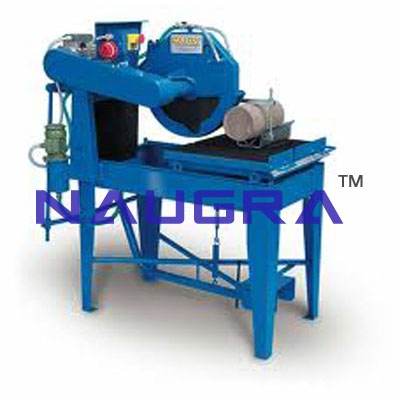

Abrasive cut off machine An abrasive cut-off machine with complete operation for precision cutting of copper, brass, steel, alloy steel or non-metallic materials in cross sections range. A thin abrasive wheel can be used and highly accurate cutting length can be achieved. Specifications of our abrasive cut off machine are as follows: Sturdy floor model cutter for sectioning Metallography Samples Rust proof construction Steel vise Cut-off wheel Coolant Tank Coolant recirculation Recirculation Pumps....
Product Code: DIDACTICLABNLE-Export-133017
This set consists of different Metallurgical Structure specimen. Fully polished, prepared and etched. Name of each structure is Given. Full set comes in plastic box. Set of 10 Set of 12 Set of 24....
Product Code: DIDACTICLABNLE-Export-133018
