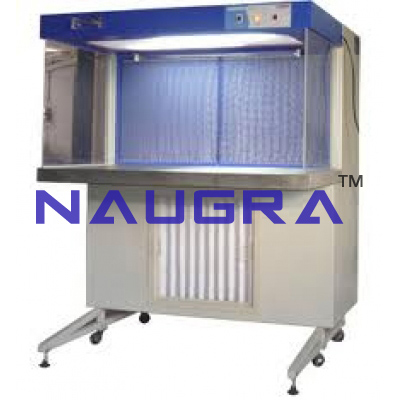

Laminar Air Flow We deal in manufacturing of Horizontal Laminar Air Flow that finds it applications in various hospitals, electronic industry and others. We use high grade component and quality raw material that is tested on various quality parameters and ensure smooth functionality. Technical Specifications: Direction of flow: Horizontal Cleanliness: CLASS 100 Velocity: 90 FPM + / -20% Hepa Filter: Size and QTY. will depend on the Size selected Particle retention: Above 0. 3 micron Blower Assembly: 1 / 3 HP, 1440 RPM Noise level: 65 decibel + / -5%....
Product Code: DIDACTICLABNLE-Export-171001.jpg "Laminar Air Flow (Vertical) Laboratory Equipments Supplies")
Laminar Air Flow (Vertical) Our Vertical Laminar Air Flow has vertical direction flow and particle retention above 0.5 micron. These are appreciated for their low noise and versatile usage. These have been designed with latest technology and can also be designed as per the specifications, provided by our clients. Application : The vertical laminar air flow cabinets is designed to provide a high degree of protection for process products In laboratories and production facilities. Many critical applications in the medical, pharmaceutical, nuclear-power, and micro electronic fields demand an ultra-clean work environment which is free from biological and particulate contamination. Operation : Ambient Air is draw in through pre-filter and is introduced in the work zone through the HEPA filter. The average velocity in the work zone is maintained between 0.4 and 0.5 m/s. Air cleanliness in the work zone is better than class 3.5 (100) in accordance with US FED STD 209 Construction : The cabinets are fabricated out of thick board duly sunmica clad or mild steel cabinet duly epoxy coated. The work table is made of thick board which is sunmica clad at top or S. S Table top will be provided as optional accessories. All joints are sealed with silastic sealant. Side panels are provided of thick transparent acrylic sheets. The unit is fitted with pre-filter and is made to pass through highly effective HEPA (High Efficiency Particular Air) filter having efficiency rating as high as 99.997% with hot, DOP, thus retaining all air-borne particles of size : 0.3 micron and larger. Using a dynamic machine, the blower and motor assembly is statically and dynamically balanced. Blowers are mounted on vibration isolation mounts to minimize vibration. The working is illuminated by fluorescent lightings fitted to the unit. Height of the working table provides comfortable “ Sit Down” working position for the operation to work on 220/230 volts AC. supply. Technical Specifications: Air Velocity Between 0.4 to 0.5 mls +-20% HEPA Efficiency Pre-filter 99.997% at 0.3 microns with DOP test Washable with an arrestance up to 90% at 5 microns Less than 65 dB (A) Sound Level Lux 900 - 1300 Lux Light Intensity Cleanliness Standard 209 E Class 100 Federal Power Supply 220 V Single phase 50 Hz....
Product Code: DIDACTICLABNLE-Export-171002.jpg "Laminar Air Flow (Horizontal) Laboratory Equipments Supplies")

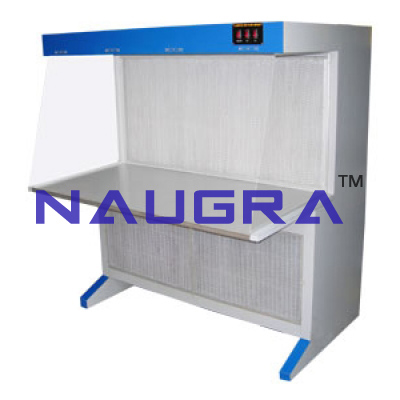

Laminar Air Flow (Horizontal) We deal in manufacturing of Horizontal Laminar Air Flow that finds it applications in various hospitals, electronic industry and others. We use high grade component and quality raw material that is tested on various quality parameters and ensure smooth functionality. Technical Specifications: Direction of flow: Horizontal Cleanliness: CLASS 100 Velocity: 90 FPM + / -20% Hepa Filter: Size and QTY. will depend on the Size selected Particle retention: Above 0. 3 micron Blower Assembly: 1 / 3 HP, 1440 RPM Noise level: 65 decibel + / -5% Rate of air flow: 0. 40 to 0. 75 M / Sec. (90 FPM) Vibration level: < 2. 5 micron....
Product Code: DIDACTICLABNLE-Export-171003

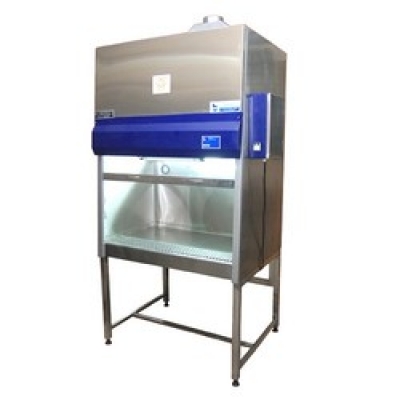

Bio Safety Cabinet (Class - 100) The Class II Laminar Flow Biological Safety Cabinet combines product, operator and environmental protection. Class II BSC's are utilized for containing low-to-moderate risk biohazardous materials. These units provide downflow HEPA-filtered air to protect the product and exhaust HEPA-filtered air to safeguard the working environment from particulate and aerosol hazards....
Product Code: DIDACTICLABNLE-Export-171004

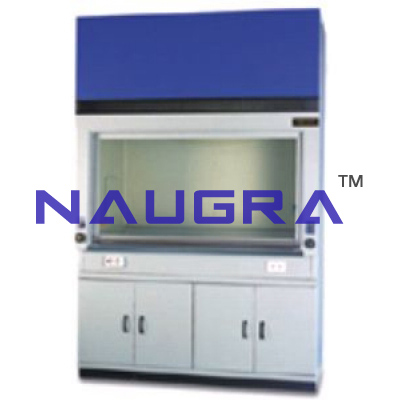

Fume Hood is identified as one of the leading manufacturers and suppliers of Fume Chamber. Our fabricated Fume Hoods combine effective control, absolute machinist protection from exposure to hazardous chemicals and agents used in the laboratory. We make Exhaust Hood keeping in mind maximum user comfort with exquisite workmanship. Its firm structure assures and offers a solution for any form of laboratories. Our Fume Exhausts constructed with GI (duly epoxy powder coated) of suitable thickness are acid resistant, non-corrosive, proven cost-effective, and solution based for chemical laboratories. We supply Fume Hood at market competitive rates that suit to all kinds of buyers’ affordability and budget.....
Product Code: DIDACTICLABNLE-Export-171005

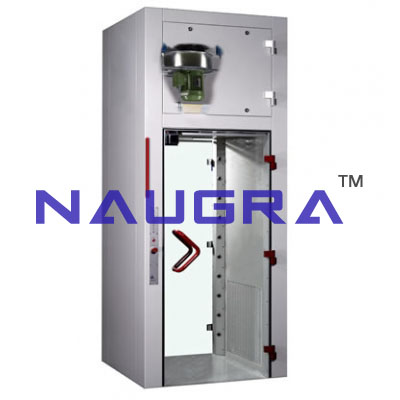

Air Shower We have established ourselves as a prominent name engaged in offering Air Shower. Manufactured using supreme quality required basic material, these products conform to the defined parameters of the industry. We offer these products are available with us in different sizes and specifications to meet diversified demands. Technical Specifications: Manufactured from heavy duty aluminum doors combined with total glazing of the body, hinge and mechanical locking with timer Removes 99.97% of all particles of 0.3 micron or larger size. Mechanical inter lock system stops unintentional entry to clean room Has 1-180 second adjustable time cycle. Blower effected the least nozzle velocity is 6000 FPM.1 and diameter nozzle actually " wash" the workers Blower I motor High Capacity, high pressure, direct drive blower to effect 6000 FPM high velocity low pressure air Electrical : 440 V-3 phase - 50 Hz Air filters : Joy pre-filter efficiency rating 60-65% Joy HEPA filter efficiency, 99.97% down to 0.3 micron....
Product Code: DIDACTICLABNLE-Export-171006

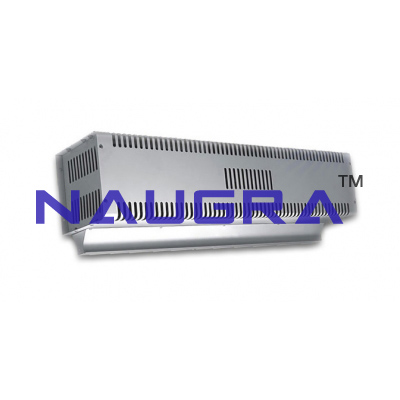

Air Curatin We are summit in the list of companies imparting air curtains for the clients. These industrial air curtain are precisely engineered with the help of expert technocrats who hold expertise in their domain. The most unique attributes of our Mild Steel Air Curtains is that it is very effective in preventing hot air, dust as well as unwanted insects from entering air-conditioned rooms. Moreover it also helps us to reduce the amount of compressed air as it puts out more air. Our Strip Air Curtain widely earn accolades for their robust construction, durability, low maintenance, economical & consume less electricity. These door heater air curtain are widely used in the Factories, Workshops, Warehouses, Ice cream parlours, Sweet etc. Before dispatching the entire range goes through strict quality test to avoid manufacturing defects.....
Product Code: DIDACTICLABNLE-Export-171007

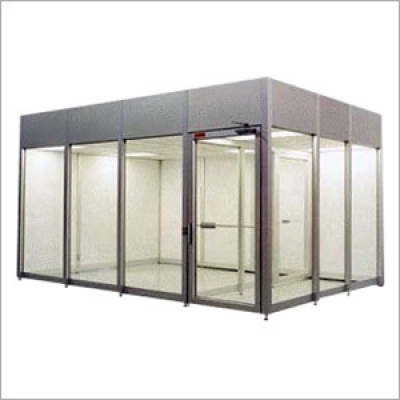

Modular Clean Room powder coated or G.I. polyurethane coated. Flush doors are of 50 mm thickness filled with PUF or honey comb paper. The door frame is of aluminium powder coated construction with 1.2 mm thickness. Doors are available with standard accessories, which are as follows: D type stainless handles for push & pull sides Stainless steel lock & key Automatic door bottom drop seal Sandwiched view panel of various sizes with toughened glass, adhesive tape and silicon sealant Door available in various colours to suit the clients' requirement. Door Interlocking System The access to the production area and ingredient store in pharmaceutical industry is through the airlock/change room. The airflow and pressurization is maintained in the airlock/change room to minimize microbiological and particulate contamination. In addition, for maintenance of airflow and pressurization, the goods manufacturing practice guidelines of various agencies around the world suggests that only one door can be opened at one time, either by procedure or by providing a door inter locking system. The procedure calls for dependence on manpower and it is difficult to ensure that the procedure is followed. An electronic door interlocking system can be considered to prevent simultaneous opening of doors of same room.....
Product Code: DIDACTICLABNLE-Export-171008
