Features · Tests most of the 6 to 40 pin ICs in DIP package. The list includes 74/54, 40/45, 93/96 series ICs, EPROMs, RAMs, Peripheral ICs, Microprocessor (8088/8085/Z80/6502) and other miscellaneous digital ICs. · Automatic testing of variety of ICs. · Potential free 40 pin universal ZIF socket. · Six Seven Segment Display to show IC number, PASS & FAIL Status, Operations display. · It has 16 keys for its operation. · Battery & Mains operation · Portable size · Audio alarm to user whenever it is required. ....
Product Code: DIDACTICLABNLE-Export-116001
FEATURES · Tests most of the 6 to 40 pin ICs in DIP package. The list includes 74/54, 40/45, 93/96 series ICs, EPROMs, RAMs, peripheral ICs, microprocessor (8088/8085/Z80/6502), operational amplifiers, voltage comparators, transistor arrays, optocouplers, analog switches, voltage followers, timers, A to D converters, D to A converters and miscellaneous analog ICs. · Automatic testing of variety of ICs. · Potential free 20 pin ZIF socket for testing analog ICs and 40 pin universal ZIF socket for testing digital ICs are provided. · 16 character x2 line LCD dot matrix display and 24 keys keyboard for man to machine communication and easy operation. · Single step mode enables the user to test the IC step by step. · Self test facility to test the internal modules of the IC tester automatically at power on and also through 'SELF TEST' key of the keyboard. · Audio alarm to user whenever it is required. SPECIFICATIONS IC PACK : Digital ICs up to 40 pins and analog ICs up to 20 pins in DIP package. IC TYPE : Tristate, open collector & bidirectional TTL/CMOS digital ICs also analog ICs as per list. TEST BY : Truth table comparison for digital ICs. Functional test of output for various input conditions for analog ICs. ZIF : 20 pin DIP ZIF for analog ICs and 40 pin Universal ZIF for digital ICs. KEY : 24 keys. DISPLAY : 16 character x 2 line. SUPPLY VOLTAGE : 230V AC.....
Product Code: DIDACTICLABNLE-Export-116002

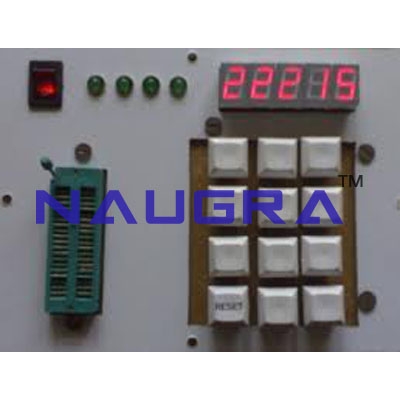

FEATURES · Tests most of the 6 to 40 pin ICs in DIP package. The list includes 74/54, 40/45, 93/96 series ICs, EPROMs, RAMs, peripheral ICs, microprocessor (8088/8085/Z80/6502), miscellaneous digital ICs. · Automatic testing of variety of ICs. · Potential free 40 pin universal ZIF socket. · Digital Display to show IC number, PASS & FAIL Status, Operations display. · It has 16/12 keys for its operation. · Battery & Mains operation · Handheld size · Audio alarm to user whenever it is required.....
Product Code: DIDACTICLABNLE-Export-116003

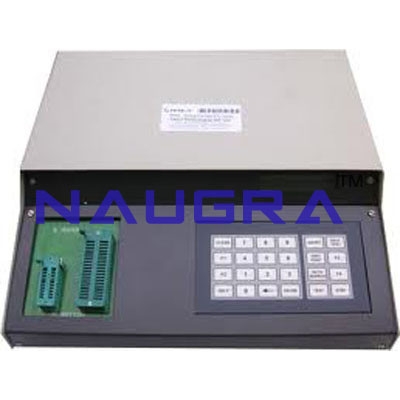

FEATURES · Tests most of the 20 pin ICs in DIP package. The list includes Operational amplifiers, voltage comparators, transistor arrays, optocouplers, analog switches, voltage followers, timers, A to D converters, D to A converters and miscellaneous analog ICs. · Potential free 20 pin universal ZIF socket. · Digital Display to show IC number, PASS & FAIL Status, Operations display. · It has 16/12 keys for its operation. · Battery & Mains operation · Handheld size · Audio alarm to user whenever it is required.....
Product Code: DIDACTICLABNLE-Export-116004
FEATURES · Tests most of the 6 to 40 pin ICs in DIP package. The list includes 74/54, 40/45, 93/96 series ICs, EPROMs, RAMs, peripheral ICs, microprocessor (8088/8085/Z80/6502), operational amplifiers, voltage comparators, transistor arrays, optocouplers, analog switches, voltage followers, timers, A to D converters, D to A converters and miscellaneous analog ICs. · Automatic testing of variety of ICs. · Potential free 40 pin universal ZIF socket. · Six Seven Segment/LCD Display to show IC number, PASS & FAIL Status, Operations display. · It has 16 keys for its operation. · Battery & Mains operation · Portable size · Audio alarm to user whenever it is required.....
Product Code: DIDACTICLABNLE-Export-116005
